Eltako
Universal Dimmer FOR Nettsconnection
Part numberEUD12FEAN / GTIN4010312108086HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

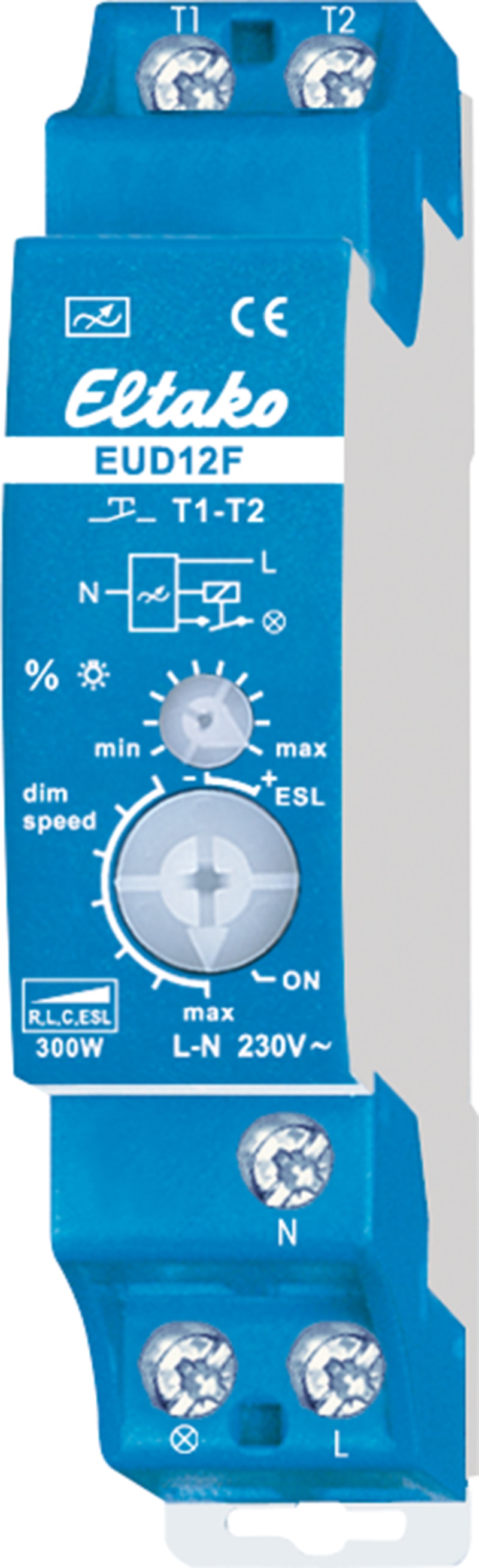

Eltako EUD12F Dimmer 0-300W (R, L, C, ESL, LED) Fastened for 230V AC Din-rail, 18 mm wide.
Technical Specifications
- Manufacturer part number (MPN)
- EUD12F
- EAN / GTIN
- 4010312108086
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Method of operation
- Push button
- Colour
- Blue
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.1 W
- Frequency
- 50 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal
- Material
- Plastic
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 5012
- Serial dimmer
- No
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Nominal power
- 0–400 VA
- Nominal voltage
- 230 V
- Control voltage
- 230 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 6 mm²
- Device width
- 18 mm
- Device height
- 82 mm
- Device depth
- 58 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- App control via Bluetooth
- No
- Nominal power resistive load
- 300 W
- Nominal power inductive load
- 300 VA
- Nominal power capacitive load
- 300 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 300 W
- Min. brightness controllable
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4010312108086
- SAP 1000743958
- Code 8423969
Product Documentation
Document preview: Universal Dimmer FOR Nettsconnection (EUD12F) — Specification sheet
