Product Description

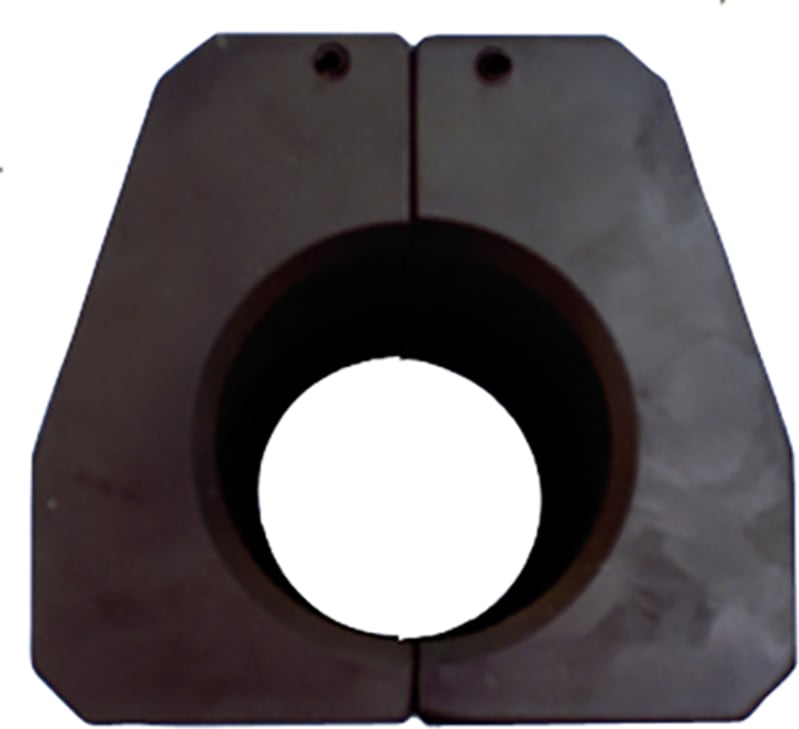

Elpress crimping die, Al 630–1000 mm². Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5325-203500
- EAN / GTIN
- 7393487002562
- Sales unit
- pcs
- Article number
- 5325-203500
- Type designation
- W60M
- Matrix holder required
- Yes
- Number of crimps
- 2
- mm² Stranded Al
- 800-1000
- Application
- Pipe cable lug and connectors
- Compression shape
- Other
- Cross section, Min (mm²)
- 800
- Cross section, Max (mm²)
- 1000
- AWG-range, Min
- 8
- AWG-range, Max
- 8
- Pieces per pack
- 1
- Net weight (kg)
- 5.1
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
- Cross section
- 800–1000 mm²
- AWG-range
- 1250–2000
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487002562
- SAP 1000071770
- Code 8765983
Product Documentation
More from Elpress
Elpress

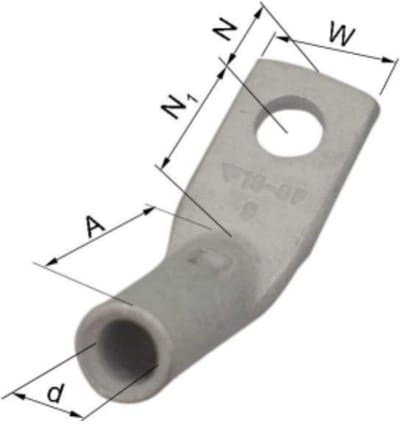

Elpress KRF16-6-45GR Copper 45° Angled Tube Cable Lug 16 mm² M6
Elpress

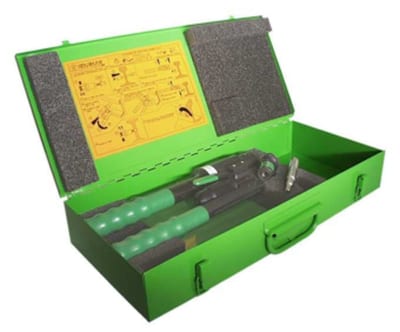

VB310-KIT (5225-002400)
Elpress
Elpress KRF16-8-45GR Copper 45° Angled Tube Cable Lug 16 mm² M8
Elpress

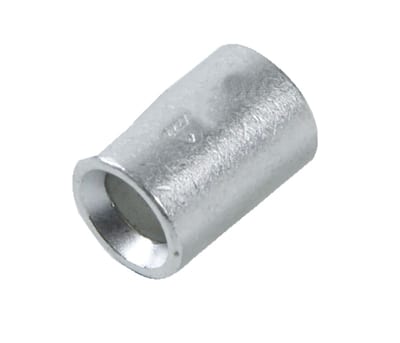

KS70P (7303-050800)
Elpress

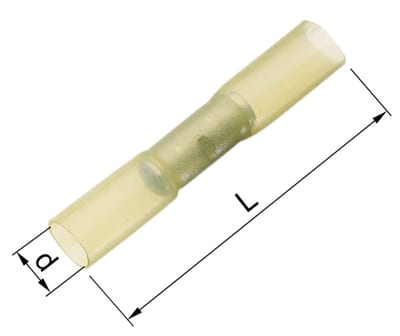

Elpress A4650SKW-CP Duraseal Heat-Shrink Splice Sleeve
A4650skw-Cp
Elpress

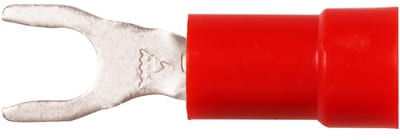

Elpress A1553G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M5 (Red)
Elpress
Elpress A1585R Ring Terminal, 0.5-1.5 mm²
Elpress

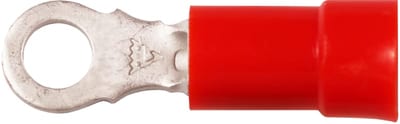

Elpress A1537R Ring Terminal, 0.5-1.5 mm²
