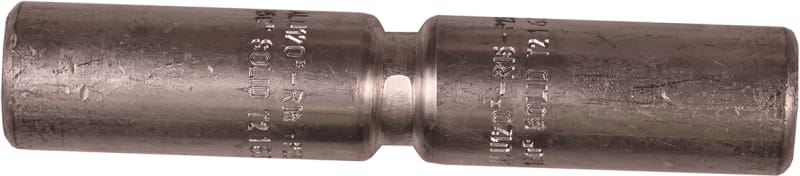

Elpress AS120 Aluminium Compression Through Connector 120 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AS120 — aluminium compression through connector (splice) with internal partition for jointing 120 mm² aluminium conductors end to end. Made from solid aluminium (Al 99.7%); the central partition acts as a cable stop for even conductor insertion from both ends. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) aluminium conductors; tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- Aluminium compression through connector with partition
- Conductor cross-section
- 120 mm²
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Feature
- Internal partition (central cable stop)
- Crimp
- Two compression crimps per side (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AS120
- EAN / GTIN
- 7393487009097
- Sales unit
- pack
- Package quantity
- 12 pack
- HS code
- 8536.90
- Article number
- 7313-400800
- Type designation
- AS120
- d (mm)
- 14
- L (mm)
- 130
- s (mm) - strip length
- 57
- AWG/MCM Stranded Al
- 250 MCM
- AWG/MCM Solid Al
- 300 MCM
- mm² Stranded Al
- 120
- mm² Solid Al
- 150
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 150
- Nominal cross section aluminium, SE, Max (mm²)
- 150
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 120
- Pieces per pack
- 12
- Net weight (kg)
- 0.115
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009097
- SAP 1000006326
- Code 8473509
Product Documentation
More from Elpress
Elpress
Elpress AS185 Aluminium Compression Through Connector 185 mm²
Elpress
Elpress KSF70 Copper Compression Through Connector 70 mm²
Elpress
Elpress KRF16-6 Copper Tube Cable Lug 16 mm² M6
Elpress
Elpress KRF35-8 Copper Tube Cable Lug 35 mm² M8
Elpress
Elpress KRFS95-10 Copper Tube Cable Lug, Narrow Palm 95 mm² M10
Elpress
Elpress AKK120-12 Aluminium-Copper Bimetallic Compression Cable Lug 120 mm² M12
Elpress
Elpress AS70 Aluminium Compression Through Connector 70 mm²
Elpress
Elpress AKK70-10 Aluminium-Copper Bimetallic Compression Cable Lug 70 mm² M10
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AS120?
- AS120 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is AS120.
- What is the HS code for AS120?
- The customs tariff (HS) code for AS120 is 8536.90.
- Who manufactures AS120?
- AS120 is a Elpress product in the Electrical Components range.
- Is a datasheet available for AS120?
- Yes — the AS120 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AS120?
- The minimum order quantity is 1.
- Is AS120 available?
- Yes — AS120 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
