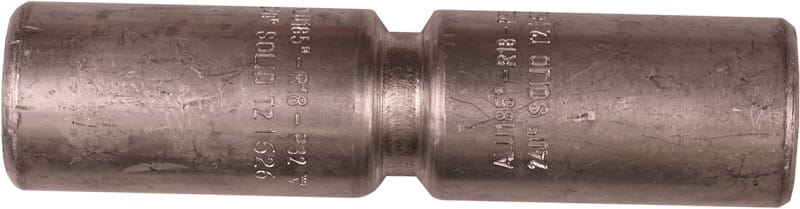

Elpress AS185 Aluminium Compression Through Connector 185 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AS185 — aluminium compression through connector (splice) with internal partition for jointing 185 mm² aluminium conductors end to end. Made from solid aluminium (Al 99.7%); the central partition acts as a cable stop for even conductor insertion from both ends. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) aluminium conductors; tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- Aluminium compression through connector with partition
- Conductor cross-section
- 185 mm²
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Feature
- Internal partition (central cable stop)
- Crimp
- Two compression crimps per side (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AS185
- EAN / GTIN
- 7393487009110
- Sales unit
- pack
- Package quantity
- 9 pack
- HS code
- 8536.90
- Article number
- 7313-401000
- Type designation
- AS185
- d (mm)
- 17.6
- L (mm)
- 131
- s (mm) - strip length
- 58
- AWG/MCM Stranded Al
- 350 MCM
- AWG/MCM Solid Al
- 500
- mm² Stranded Al
- 185
- mm² Solid Al
- 240
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 240
- Nominal cross section aluminium, SE, Max (mm²)
- 240
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 185
- Pieces per pack
- 9
- Net weight (kg)
- 0.198
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009110
- SAP 1000000596
- Code 814146
Product Documentation
