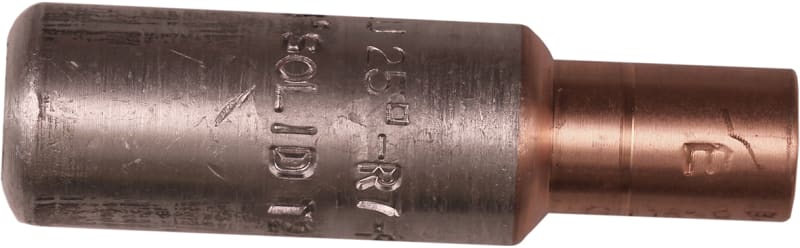

Elpress AKS25-16 Aluminium-Copper Bimetallic Through Connector 25 mm² Al / 16 mm² Cu

Elpress AKS25-16 — bimetallic (AlCu) through connector for jointing a 25 mm² aluminium conductor to a 16 mm² copper conductor. Aluminium is friction-welded to copper from solid material, giving a direct Al-to-Cu splice without an intermediate transition washer. Two compression crimps are made on the aluminium side and one on the copper side. Accepts stranded/solid aluminium (IEC 60228 Class 1/2) and stranded copper (Class 2) conductors; tested to IEC 61238-1 within the Elpress crimp system. Range 16-400 mm².

Type

AlCu bimetallic through connector (splice)

Aluminium conductor

25 mm²

Copper conductor

16 mm²

Material

Friction-welded solid aluminium + electrolytic copper

Crimp

Two crimps on the aluminium side, one on the copper side

Crimp system

System Elpress, tested to IEC 61238-1

Manufacturer part number (MPN)

AKS25-16

EAN / GTIN

7393487009684

Sales unit

pcs

Package quantity

48 pcs

HS code

8536.90

Article number

7333-400100

Type designation

AKS25-16

s1 (mm)

15

d (mm)

6.8

L (mm)

45.5

d1 (mm)

6

s (mm) - strip length

29

AWG/MCM Stranded Al

4 AWG

AWG/MCM Solid Al

2 AWG

AWG/MCM Cu

6 AWG

mm² Stranded Al

25

mm² Solid Al

35

mm² Cu

16

Screen conductor (mm²)

15

Oil stop/centre bar

Yes

Voltage level

Other

Cross section shape

Round/sector-shaped

Nominal cross section aluminium, SE, Min (mm²)

35

Nominal cross section aluminium, SE, Max (mm²)

35

Nominal cross section aluminium, RM/SM, Max (mm²)

25

Pieces per pack

48

Net weight (kg)

0.014

Height Pack (mm)

87

Depth Pack (mm)

141

Width Pack (mm)

86

HS Code

8536.90

• EAN 7393487009684
• SAP 1000011002
• Code 8101655
