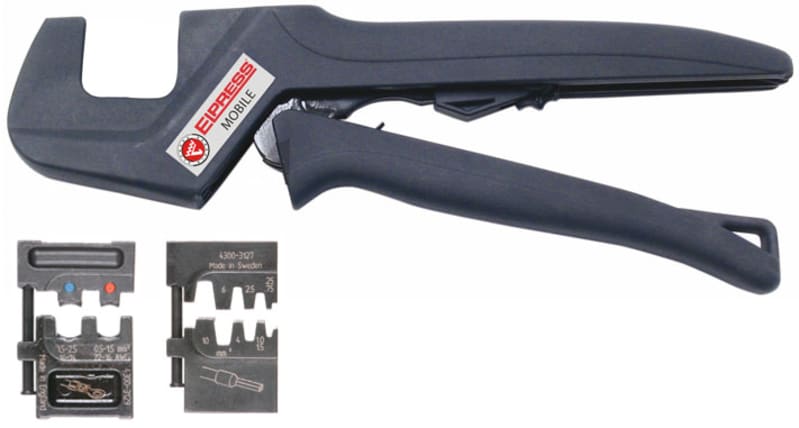

Elpress Mobile Installation Universal Crimping Pliers with 2 Interchangeable Dies

Elpress Mobile Installation (article 5119-310300) is a hand-operated universal crimping tool supplied with two interchangeable die inserts. The pliers crimp insulated terminals in the 0.5 to 2.5 mm² range and bootlace ferrules from 0.25 to 10 mm² (AWG 24 to 8) using a square crimp geometry. A mechanical locking device ensures a full crimp cycle before the jaws release, and an automatic return spring speeds repetitive work. Typical use is in field installation, panel wiring, and service work where a compact all-round crimping solution is preferred.

Manufacturer part number (MPN)

MOBILE INSTALLATION EAN / GTIN: 7393487034891 Sales unit: pcs Article number: 5119-310300 Type designation: MOBILE INSTALLATION Crimp geometries: Square AWG/MCM Cu: 24 - 8 AWG mm² Cu: 0,25-10 Suitable for: Various applications Construction/operation: Mechanic Compression shape: Universal (exchangeable inserts) With locking device (for mechanical tools): Yes Cross section, Min (mm²): 0.25 Cross section, Max (mm²): 10 AWG-range, Min: 24 AWG-range, Max: 8 With automatic return: Yes Inserts exchangeable: Yes Number of included inserts: 2 Cycle time, Min (s): 10 Compression force, Min (kN): 10 Compression force, Max (kN): 10 Length (mm): 234 Pieces per pack: 1 Net weight (kg): 0.695 Height Pack (mm): 33 Depth Pack (mm): 335 Width Pack (mm): 160 Cross section: 0.25–10 mm² Country of origin: Sweden

HS Code

8203.20

• EAN 7393487034891
• SAP 1000015496
• Code 8122961
