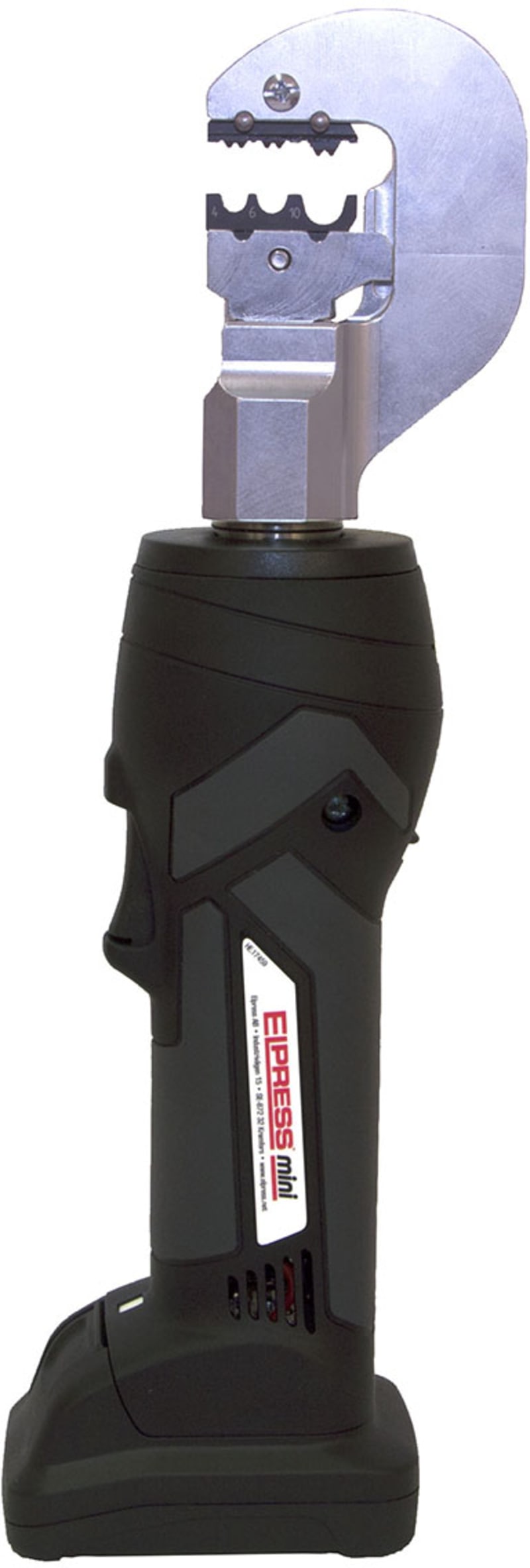

Product Description
Elpress crimping tool. Part of the Elpress crimping tool system; dies, punches and crimp heads are matched by tool system and conductor cross-section.
Technical Specifications
- Manufacturer part number (MPN)
- 5204-010200
- EAN / GTIN
- 7393487059818
- Sales unit
- pcs
- Article number
- 5204-010200
- Type designation
- PVL130P
- Delivery box
- Plastic case
- Working temperature, Min (°C)
- -10
- Working temperature, Max (°C)
- 40
- Crimp geometries
- Tab, Oval, Roll, Trapezoid, W
- Battery
- 10,8V, 2Ah Li-Ion
- Crimp time (s)
- approx. 2, depending on the material
- Crimps/charge
- approx. 230 for 10 mm² Cu
- AWG/MCM Cu
- 24 - 1/0 AWG
- mm² Cu
- 0,25-50
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Accumulator-hydraulic
- Compression shape
- Universal (exchangeable inserts)
- Cross section, Min (mm²)
- 0.25
- Cross section, Max (mm²)
- 50
- AWG-range, Min
- 24
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Number of included inserts
- 1
- Compression force, Min (kN)
- 13
- Compression force, Max (kN)
- 13
- Length (mm)
- 330
- Pieces per pack
- 1
- Net weight (kg)
- 1.5
- Height Pack (mm)
- 130
- Depth Pack (mm)
- 450
- Width Pack (mm)
- 420
- Cross section
- 0.14–50 mm²
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487059818
- SAP 1000795624
- Code 81417320
Product Documentation
More from Elpress
Elpress
Elpress KR1,5-5 Copper Tube Cable Lug 1.5 mm² M5
Elpress
Elpress Crimping tool for wire-end ferrules
2001001
Elpress
KRFS240A-10 (7301-292500)
Elpress
Elpress Compression cable lug, KRF-series, 240 mm², M16 stud
7301-145800
Elpress
Elpress Compression cable lug, KRF-series, 300 mm², M16 stud
7310-146400
Elpress
Elpress Crimping die set (5303-104200)
Elpress
Elpress EMBLA S Combination Cutting and Stripping Tool
Elpress

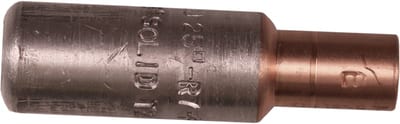

Elpress AKS25-16 Aluminium-Copper Bimetallic Through Connector 25 mm² Al / 16 mm² Cu
