Product Description
Elpress crimping die set. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 13DB9
- EAN / GTIN
- 7393487026599
- Sales unit
- pcs
- Article number
- 5303-103000
- Type designation
- 13DB9
- W (mm)
- 8.42
- L (mm)
- 9
- h1 (mm)
- 3.64
- h2 (mm)
- 1
- Crimp geometries
- Dual
- Number of crimps
- 1
- mm² KR/KS, KRF/KSF
- 16
- Application
- Pipe cable lug and connectors
- Compression shape
- Hexagon
- Cross section, Min (mm²)
- 16
- Cross section, Max (mm²)
- 16
- Pieces per pack
- 1
- Net weight (kg)
- 0.447
- Height Pack (mm)
- 41
- Depth Pack (mm)
- 87
- Width Pack (mm)
- 68
- Cross section
- 16 mm²
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487026599
- SAP 1000417218
- Code 826897
Product Documentation
More from Elpress
Elpress
Elpress AKS150-95 Aluminium-Copper Bimetallic Through Connector 150 mm² Al / 95 mm² Cu
Elpress

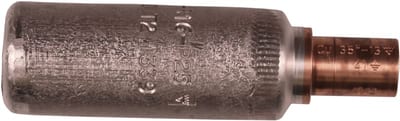

Elpress AKS150-35 Aluminium-Copper Bimetallic Through Connector 150 mm² Al / 35 mm² Cu
