Elpress KRFN50-10 Copper Tube Cable Lug (Narrow Palm) 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description

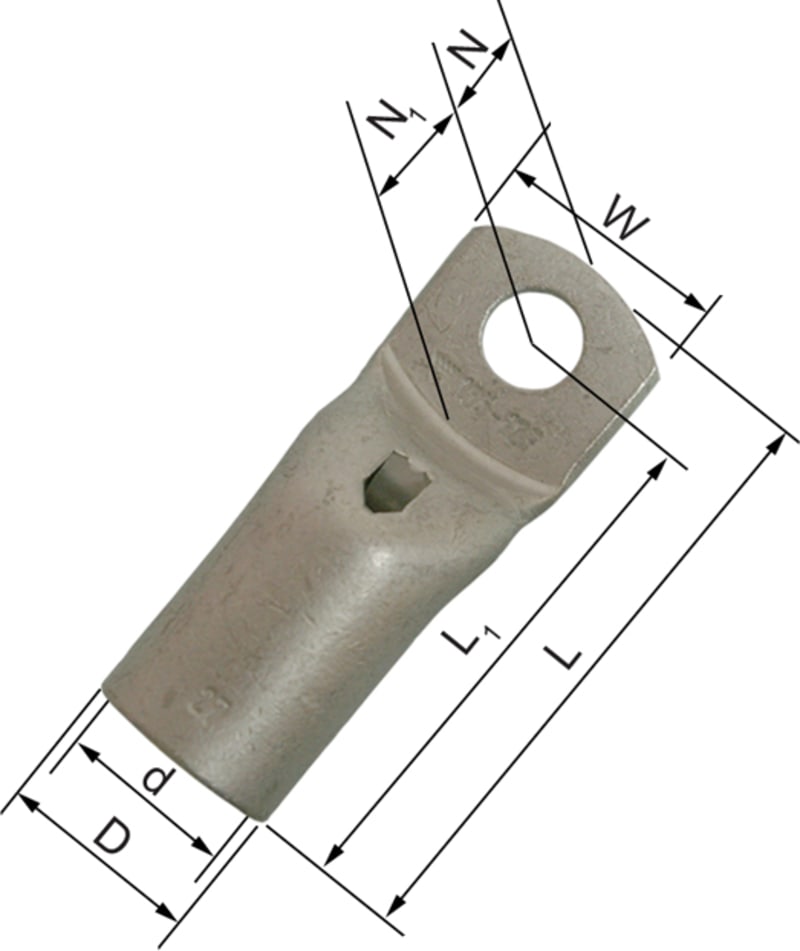

Elpress KRFN50-10 — narrow-palm compression (crimp) tube cable lug for terminating a 50 mm² copper conductor onto an M10 stud. The palm is narrower than the standard KRF lug (and wider than KRFS), for terminals set at reduced centre distances. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a cable inspection hole. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors. Crimped with matching Elpress dies to a gas-tight, low-resistance connection tested to IEC 61238-1. Approvals: UL File E205350, DNV type approval.
Technical Specifications
- Type
- Compression (crimp) tube cable lug, narrow palm
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M10
- Palm
- Narrow (narrower than KRF, wider than KRFS)
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- UL File E205350, DNV type approval
- Manufacturer part number (MPN)
- KRFN50-10
- EAN / GTIN
- 7393487044593
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487044593
- SAP 1000416754
- Code 8970652
Product Documentation
