ISOL Flatstiftsforb 0,5-1,5
Pricing
Request a quote
We reply within 24 hours
Product Description

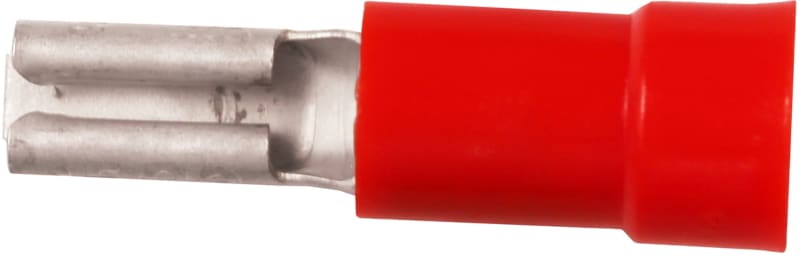

Elpress A1505FLS5 insulated blade receptacle 0,5-1,5 mm².
Technical Specifications
- Manufacturer part number (MPN)
- A1505FLS5 EAN / GTIN: 7393487004924 Sales unit: pcs Package quantity: 100 pcs Article number: 7462-500300 Type designation: A1505FLS5 W (mm): 5 d (mm): 3.2 L (mm): 19.5 s (mm) - strip length: 7 Insulation material: PA Tab Size: 4,8x0,5 Insulation colour: Red (insulated terminals) material: Brass, Cu/Sn Easy-entry: Yes Neck type: Brazed AWG/MCM Cu: 20 - 16 AWG mm² Cu: 0,5-1,5 Model: Sleeve Halogen free: Yes Insulation: Partially isolated Colour insulation: Red Plug dimensions: Flat 4.8x0.5 mm AWG-range, Min: 20 AWG-range, Max: 16 Nominal cross section, Min (mm²): 0.5 Nominal cross section, Max (mm²): 1.5 material insulation: PA (Polyamide) Pieces per pack: 100 Net weight (kg): 0.0008 Height Pack (mm): 100 Depth Pack (mm): 60 Width Pack (mm): 22 Surface protection: Tinned AWG-range: 16–20 Nominal cross section: 0.5–1.5 mm² With cam clamp: No With tap spreader: No Country of origin: Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004924
- SAP 1000056719
- Code 8894306
Product Documentation
