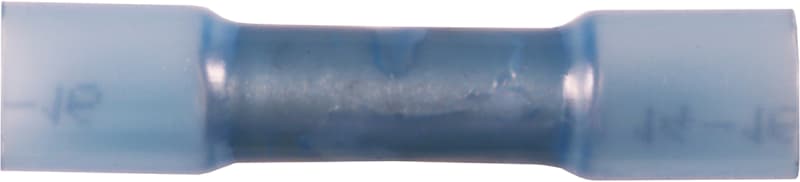

Elpress A2535SKW
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A2535SKW is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 25 pcs; Type designation: A2535SKW; d (mm): 4.6; L (mm): 31.5; s (mm) - strip length: 8.
Technical Specifications
- Manufacturer part number (MPN)
- A2535SKW
- EAN / GTIN
- 7393487004788
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Article number
- 7288-228600
- Type designation
- A2535SKW
- d (mm)
- 4.6
- L (mm)
- 31.5
- s (mm) - strip length
- 8
- Insulation material
- PA
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Model
- Normal version
- Surface protection
- Tin plated
- Insulation
- Fully isolated
- Colour insulation
- Blue
- Material
- Copper
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Pieces per pack
- 25
- Net weight (kg)
- 0.0013
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Type of connection
- Cross connector
- Oil stop/centre bar
- No
- For pull protected connections
- No
- Voltage level
- Up to 600 V
- Nominal cross section
- 1.5–2.5 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004788
- SAP 1000002982
- Code 819028
