Elpress

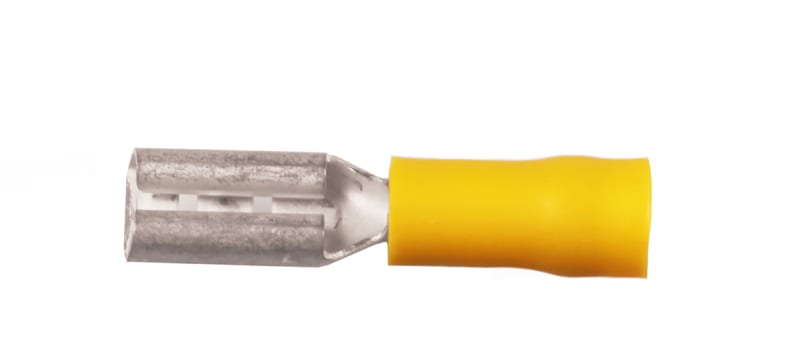

Elpress A0503FLS5 Receptacle, Rolled Type, 0.1-0.5 mm²
Part numberA0503FLS5EAN / GTIN7393487013841HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A0503FLS5 Insulated blade receptacle.
Technical Specifications
- Manufacturer part number (MPN)
- A0503FLS5
- EAN / GTIN
- 7393487013841
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7463-250100
- Type designation
- A0503FLS5
- W (mm)
- 3.7
- d (mm)
- 2.2
- L (mm)
- 16.4
- s (mm) - strip length
- 7
- Insulation material
- PVC
- Tab Size
- 2,8x0,5
- Insulation colour
- Light yellow (insulated terminals)
- Material
- Brass, Cu/Sn
- Easy-entry
- Yes
- Neck type
- Brazed
- AWG/MCM Cu
- 26 - 20 AWG
- mm² Cu
- 0,1-0,5
- Model
- Sleeve
- Insulation
- Partially isolated
- Colour insulation
- Yellow
- AWG-range, Min
- 26
- AWG-range, Max
- 20
- Nominal cross section, Min (mm²)
- 0.1
- Nominal cross section, Max (mm²)
- 0.5
- Material insulation
- PVC
- Pieces per pack
- 100
- Net weight (kg)
- 0.0003
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Halogen free
- No
- Surface protection
- Tinned
- Plug dimensions
- Flat 2.8x0.5 mm
- Nominal cross section
- 0.1–0.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487013841
- SAP 1000042005
- Code 8768659
Product Documentation
Document preview: Elpress A0503FLS5 Receptacle, Rolled Type, 0.1-0.5 mm² — Specification sheet
