Elpress

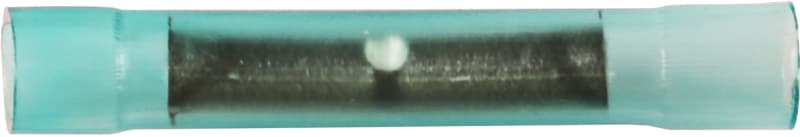

Elpress A0824SK Through Connector, 0.25-0.75 mm²
Part numberA0824SKEAN / GTIN7393487004801HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A0824SK Insulated skarvhylse.
Technical Specifications
- Manufacturer part number (MPN)
- A0824SK
- EAN / GTIN
- 7393487004801
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 0.25-0.75 mm²
- Article number
- 7289-500100
- Type designation
- A0824SK
- d (mm)
- 2.4
- L (mm)
- 20
- s (mm) - strip length
- 7
- Insulation material
- PC
- AWG/MCM Cu
- 26 - 20 AWG
- mm² Cu
- 0,25-0,75
- Model
- Normal version
- Type of connection
- Parallel connector
- Surface protection
- Tin plated
- Insulation
- Fully isolated
- Voltage level
- Up to 600 V
- Colour insulation
- Green
- Material
- Copper
- AWG-range, Min
- 26
- AWG-range, Max
- 22
- Nominal cross section, Min (mm²)
- 0.25
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Net weight (kg)
- 0.0004
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Pieces per pack
- 100
- Oil stop/centre bar
- No
- For pull protected connections
- No
- AWG-range
- 20–24
- Nominal cross section
- 0.25–0.75 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Sleeve form
- Short
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004801
- SAP 1000064419
- Code 8730885
Product Documentation
Document preview: Elpress A0824SK Through Connector, 0.25-0.75 mm² — Specification sheet
