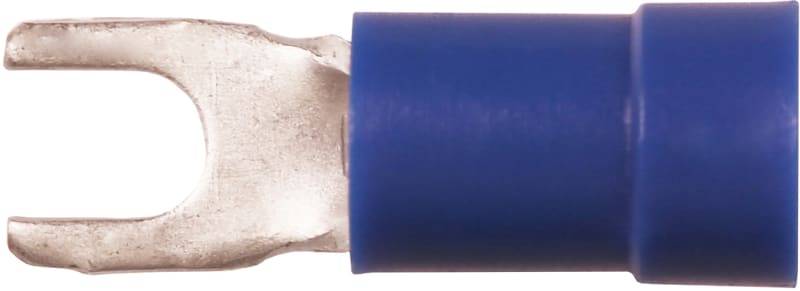

Elpress A2553G
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A2553G is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A2553G; W (mm): 8; d (mm): 4.5; L (mm): 22.
Technical Specifications
- Manufacturer part number (MPN)
- A2553G
- EAN / GTIN
- 7393487004542
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7280-271300
- Type designation
- A2553G
- W (mm)
- 8
- d (mm)
- 4.5
- L (mm)
- 22
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 8
- Insulation material
- PC
- Insulation colour
- Blue (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M5
- Neck type
- Brazed
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- L1 (mm)
- 18
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Fork shape
- Colour insulation
- Blue
- Bolt dimension metric (M)
- 5
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0008
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Pieces per pack
- 100
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004542
- SAP 1000036821
- Code 8726388
Product Documentation
