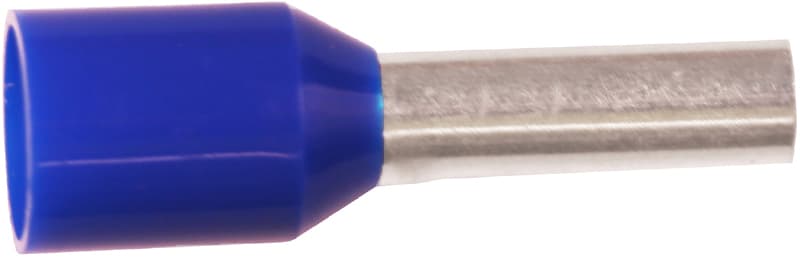

Elpress A2,5-8ET Insulated End Ferrule 2.5 mm² 8 mm

Elpress A2,5-8ET — pre-insulated end ferrule (cord-end / bootlace terminal) for terminating a 2.5 mm² stranded conductor, with a 8 mm tinned-copper barrel and a polypropylene insulating collar. The barrel is electrolytic copper (Cu 99.95%) tin-plated (Cu/Sn); the neck is brazed and annealed so it can be crimped in any orientation. Insulation and dimensions conform to DIN 46228-4; halogen-free. Crimped with matching Elpress dies (System Elpress) for a gas-tight termination into terminal blocks, connectors and switchgear. Operating temperature −5 °C to +105 °C. Approvals: CSA, UL, CE, UKCA; REACH / RoHS compliant.

Type

Pre-insulated end ferrule (cord-end terminal)

Conductor cross-section

2.5 mm²

Insulated barrel length

8 mm

Barrel material

Electrolytic copper Cu 99.95%, tin-plated (Cu/Sn)

Insulation

Polypropylene (PP), halogen-free

Standard

DIN 46228-4

Operating temperature

−5 °C to +105 °C

Crimp system

System Elpress; brazed and annealed neck (crimp in any direction)

Approvals

CSA, UL, CE, UKCA; REACH / RoHS

Manufacturer part number (MPN)

A2,5-8ET

EAN / GTIN

7393487013131

Sales unit

pcs

Package quantity

100 pcs

HS code

8536.90

Article number

7287-007600

Type designation

A2,5-8ET

d (mm)

4.2

L1 (mm)

8

L (mm)

15

s (mm) - strip length

10

Working temperature, Min (°C)

-5

Working temperature, Max (°C)

105

Insulation material

PP

Insulation colour

Blue (end sleeves)

Material

Cu, Cu/Sn

Measures acc DIN46228

Yes

AWG/MCM Cu

14 AWG

mm² Cu

2,5

Colour

Blue

Sleeve length (mm)

8

Insulated

Yes

Halogen free

Yes

Surface protection

Tin plated

Construction type

Standard

Material insulation

PP (Polypropylene)

AWG size

14

Nominal cross section (mm²)

2.5

Pieces per pack

100

Net weight (kg)

0.0001

Height Pack (mm)

85

Depth Pack (mm)

180

Width Pack (mm)

145

HS Code

8536.90

• EAN 7393487013131
• MPN A2,5-8ET
