Overview

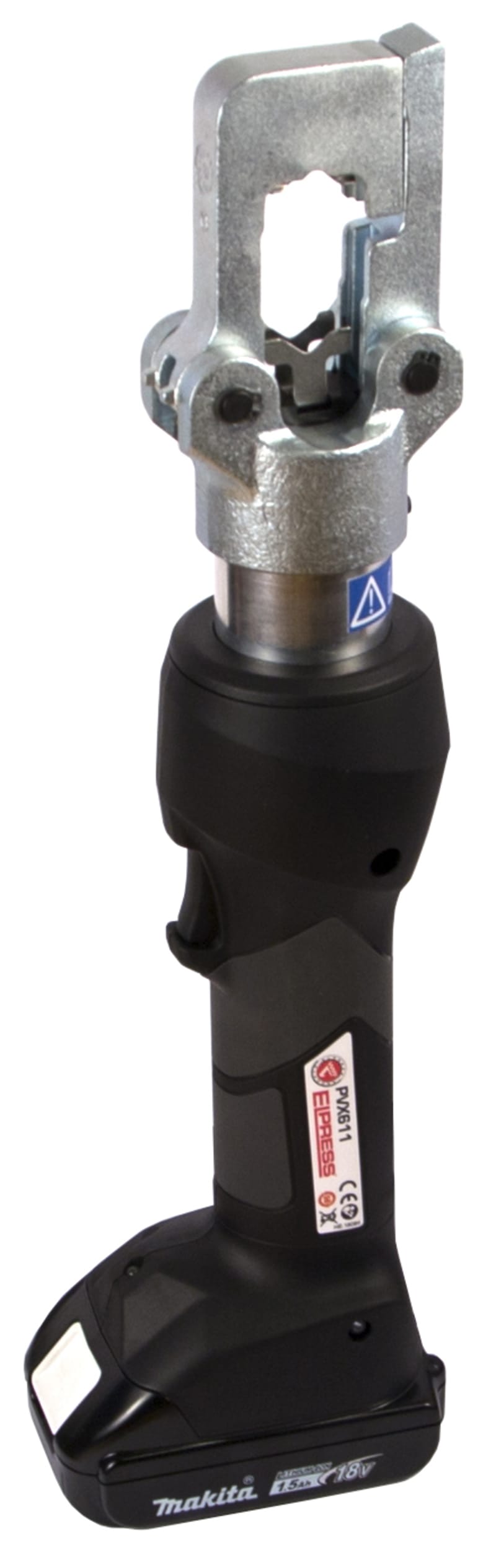

Elpress Pressverktyg 6 ton (PVX611) is listed under Tools / Crimping Tools. Sales unit: pcs; Type designation: PVX611; Fast forward function: Yes; Crimp geometries: Punch, Hexagonal, Oval; Safety device: Closed chassis; Pressure monitoring via display: Yes.
Technical Specifications
- Manufacturer part number (MPN)
- PVX611
- EAN / GTIN
- 7393487061262
- Sales unit
- pcs
- Article number
- 5204-011800
- Type designation
- PVX611
- Fast forward function
- Yes
- Delivery box
- Plastic case
- Crimp geometries
- Punch, Hexagonal, Oval
- Safety device
- Closed chassis
- Pressure monitoring via display
- Yes
- Work light
- Yes
- Charger
- Li-Ion Makita
- Charge time (min)
- 15
- Battery
- Li-Ion Makita, 2Ah, 18V
- No. of batteries
- 1
- Crimp time (s)
- 3-6, depending on size
- Crimps/charge
- 100-200, depending on size and temperature
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Solid Al
- 6 - 2 AWG
- AWG/MCM Cu
- 18 - 10 AWG
- mm² Stranded Al
- 16-25
- mm² Solid Al
- 16-35
- mm² Cu
- 10-240
- mm² KR/KS, KRF/KSF
- 10-150
- mm² KRT/KST
- 10-240
- mm² KRD/KSD
- 16-185
- Crimp range C-connectors min (mm²)
- 6/6
- Crimp range C-connectors max (mm²)
- 50/50
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 25
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Accumulator-hydraulic
- Compression shape
- Other
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 150
- AWG-range, Min
- 8
- AWG-range, Max
- 300
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Cycle time, Min (s)
- 3
- Cycle time, Max (s)
- 6
- Compression force, Min (kN)
- 55
- Compression force, Max (kN)
- 55
- Length (mm)
- 414
- Pieces per pack
- 1
- Net weight (kg)
- 5.5
- Height Pack (mm)
- 120
- Depth Pack (mm)
- 410
- Width Pack (mm)
- 500
- With locking device (for mechanical tools)
- No
- Cross section
- 10–150 mm²
- Compression force
- 0–6 kN
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487061262
- SAP 1200076237
- Code 81922150
