Elpress B1543G Uninsulated Flanged Fork (Spade) Terminal 0.75–1.5 mm² M4
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B1543G — uninsulated flanged fork (spade) terminal for a 0.75–1.5 mm² copper conductor, for an M4 screw stud (fork slot Ø 4.3 mm). Bare tinned 99.95% copper with a brazed neck. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Uninsulated flanged fork (spade) terminal
- Conductor cross-section
- 0.75–1.5 mm²
- Stud size
- M4 (fork slot Ø 4.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- None (bare)
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- B (uninsulated)
- Manufacturer part number (MPN)
- B1543G
- EAN / GTIN
- 7393487004023
- Sales unit
- pcs
- HS code
- 8536.90
- Article number
- 7259-273500
- Type designation
- B1543G

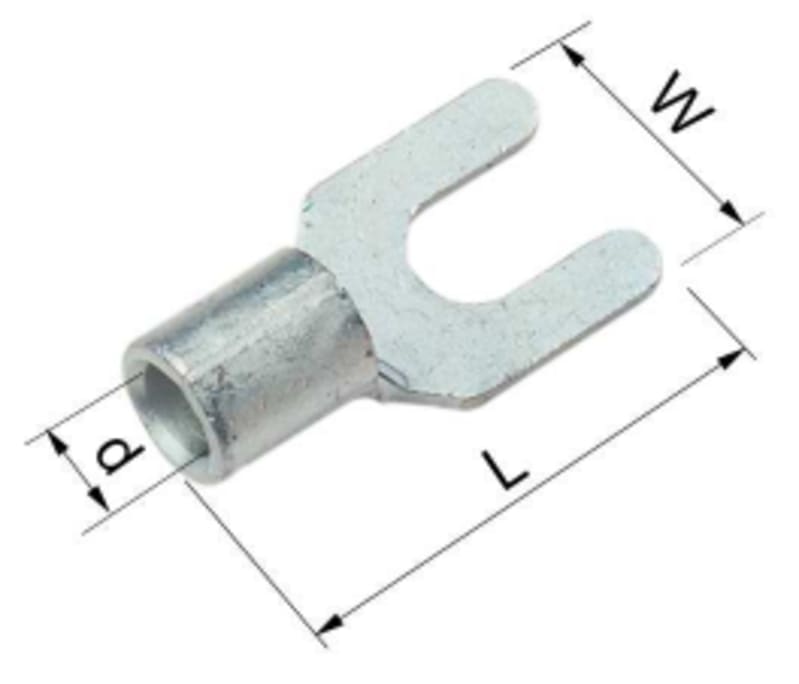

- W (mm)
- 7.2
- d (mm)
- 1.9
- L (mm)
- 16
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Screw
- M4
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Flange shape
- Fork shape
- Bolt dimension metric (M)
- 4
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0005
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004023
- SAP 1000416532
- Code 8966783
Product Documentation
