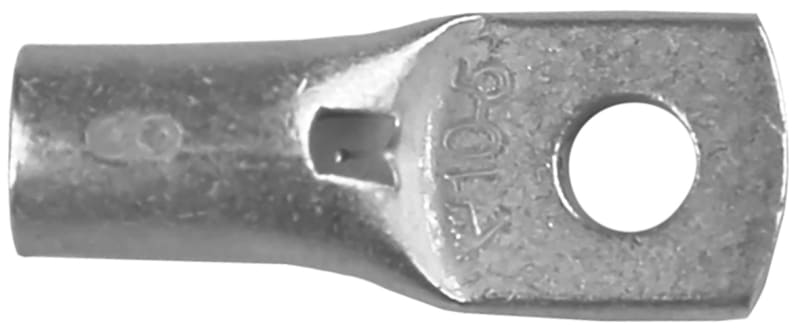

Elpress KR10-6 Copper Tube Cable Lug 10 mm² M6
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KR10-6 — compression (crimp) tube cable lug for terminating 10 mm² copper conductor onto an M6 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Crimped connection tested to IEC 61238-1 (System Elpress). Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 10 mm²
- Stud / bolt hole
- M6
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- KR10-6
- EAN / GTIN
- 7393487005891
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
- Article number
- 7301-011800
- Type designation
- KR10-6
- W (mm)
- 11.5
- N (mm)
- 6
- N1 (mm)
- 7.5
- P (mm)
- 13.5
- d (mm)
- 5
- L (mm)
- 29
- t (mm) - palm thickness
- 3
- s (mm) - strip length
- 11
- Screw
- M6
- Inspection hole
- Yes
- AWG/MCM Cu
- 8 AWG
- mm² Cu
- 10
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 6
- With sight-hole
- Yes
- AWG size
- 8
- Pieces per pack
- 100
- Net weight (kg)
- 0.007
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005891
- SAP 1000028668
- Code 8504351
Product Documentation
More from Elpress
Elpress
Elpress FSHD23 Heavy Duty Earthing Rod Front Section Ø21
Elpress
Elpress Hexagon crimping die, copper (13B38)
Elpress
Universal pliers without Dies
MOBILE
Elpress
Elpress KR4-6 Copper Tube Cable Lug 4 mm² M6
Elpress
Elpress KR4-5 Copper Tube Cable Lug 4 mm² M5
Elpress
Ändsleeveverktyg (PEB0110T)
Elpress
Elpress Crimping tool, Cu 16–25 mm²
EL2258
Elpress
Elpress B1,5-10ET Uninsulated End Terminal, 1.5 mm²
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KR10-6?
- KR10-6 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KR10-6.
- What is the HS code for KR10-6?
- The customs tariff (HS) code for KR10-6 is 8536.90.
- Who manufactures KR10-6?
- KR10-6 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KR10-6?
- Yes — the KR10-6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KR10-6?
- The minimum order quantity is 1.
- Is KR10-6 available?
- Yes — KR10-6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
