Elpress
Elpress UNINSULATED RING TERMINAL 1,5-2,5 B2585R
Part numberB2585REAN / GTIN7393487003880HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

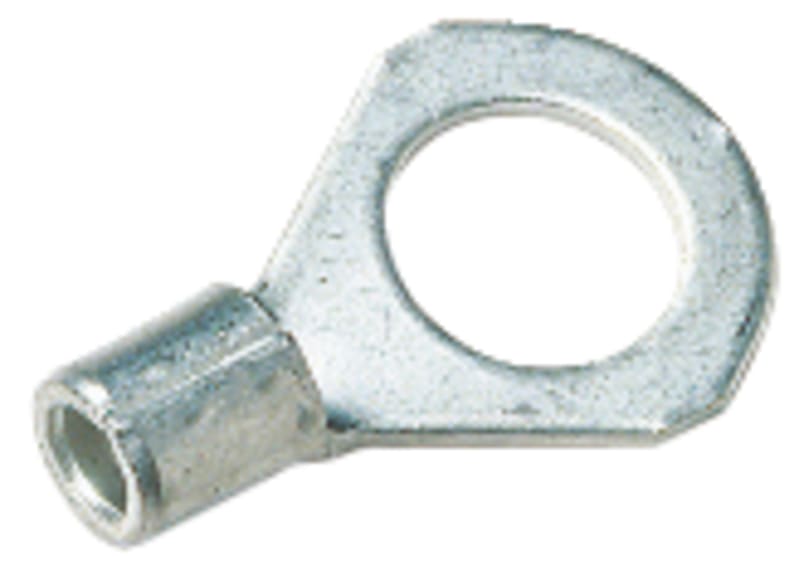

Elpress B2585R UNINSULATED RING TERMINAL 1,5-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- B2585R
- EAN / GTIN
- 7393487003880
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7259-261500
- Type designation
- B2585R
- d (mm)
- 2.3
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 8
- Material
- Cu, Cu/Sn
- Screw
- M8
- Neck type
- Brazed
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- W (mm)
- 14
- L (mm)
- 23
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Not isolated
- Flange shape
- Ring shape
- Bolt dimension metric (M)
- 8
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0009
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003880
- SAP 1000416522
- Code 81115870
Product Documentation
Document preview: Elpress UNINSULATED RING TERMINAL 1,5-2,5 B2585R — Specification sheet
