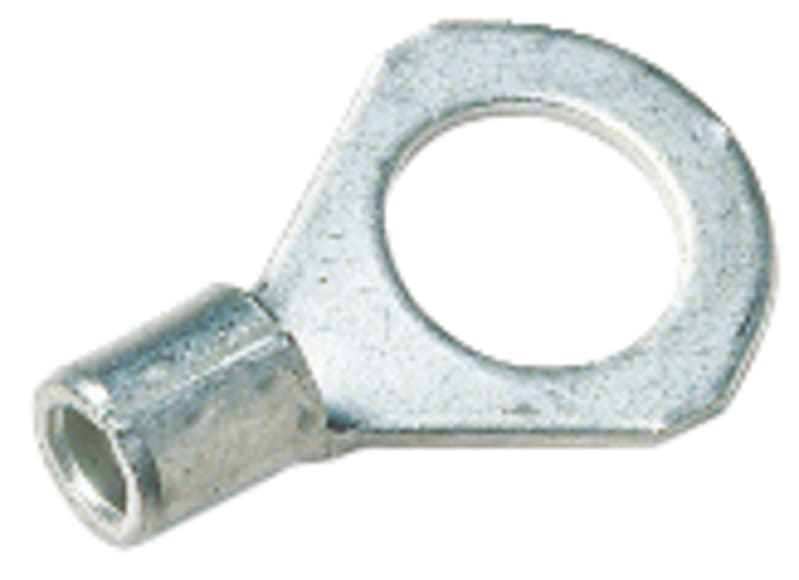

Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1565R
Part numberB1565REAN / GTIN7393487003842HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B1565R UNINSULATED RING TERMINAL 0,75-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- B1565R
- EAN / GTIN
- 7393487003842
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7259-260900
- Type designation
- B1565R
- W (mm)
- 11.6
- d (mm)
- 1.9
- L (mm)
- 21.5
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Material
- Cu, Cu/Sn
- Screw
- M6
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Not isolated
- Flange shape
- Ring shape
- Bolt dimension metric (M)
- 6
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0009
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Total length
- 21.5 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 6
- Nominal cross section
- 0.75–1.5 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Stud size (imperial)
- 6
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003842
- SAP 1000416514
- Code 823642
Product Documentation
Document preview: Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1565R — Specification sheet
More from Elpress
Elpress
B2507FLS1 (7167-503000)
Elpress
Elpress KRFN70-6 Copper Tube Cable Lug (Narrow Palm) 70 mm² M6
Elpress
Elpress KR10-8-45GR Copper 45° Angled Tube Cable Lug 10 mm² M8
Elpress
Elpress A4685R
Elpress
Hydraulic Cable Shears Head (embla SP S-Cassette)
EMBLA SP S-CASSETTE
Elpress
Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1532R
Elpress
Elpress A1565R
Elpress
Elpress AKP50 Aluminium-Copper Bimetallic Pin Socket — 50 mm² Al Conductor, 9.6 mm Cu Pin
