Elpress
B2507FLS1 (7167-503000)
Part number7167-503000EAN / GTIN7393487003507HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

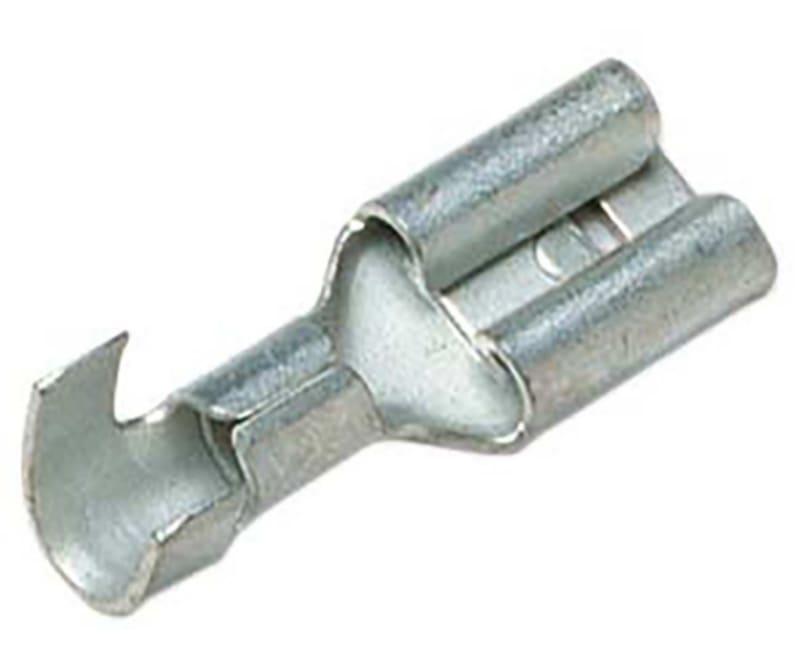

Elpress 7167-503000 UNINSULATED.BLADE RECEPTACLE 1,5-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- 7167-503000
- EAN / GTIN
- 7393487003507
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7167-503000
- Type designation
- B2507FLS1
- e (mm)
- 7.6
- L (mm)
- 19
- t (mm) - palm thickness
- 0.4
- s (mm) - strip length
- 8
- Tab Size
- 6,3x0,8
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Model
- Sleeve
- Insulation
- Not isolated
- Colour insulation
- Other
- Plug dimensions
- Flat 6.3x0.5 mm
- Material
- Brass
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Material insulation
- Other
- Pieces per pack
- 100
- Net weight (kg)
- 0.0008
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003507
- SAP 1200842738
- Code 84039095
Product Documentation
Document preview: B2507FLS1 (7167-503000) — Specification sheet
More from Elpress
Elpress
Elpress KRFN70-6 Copper Tube Cable Lug (Narrow Palm) 70 mm² M6
Elpress
Elpress KR10-8-45GR Copper 45° Angled Tube Cable Lug 10 mm² M8
Elpress
Elpress A4685R
Elpress
Hydraulic Cable Shears Head (embla SP S-Cassette)
EMBLA SP S-CASSETTE
Elpress
Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1532R
Elpress
Elpress A1565R
Elpress
Elpress AKP50 Aluminium-Copper Bimetallic Pin Socket — 50 mm² Al Conductor, 9.6 mm Cu Pin
Elpress
SE26-38 (8010-042900)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 7167-503000?
- 7167-503000 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is 7167-503000.
- What is the HS code for 7167-503000?
- The customs tariff (HS) code for 7167-503000 is 8536.90.
- Who manufactures 7167-503000?
- 7167-503000 is a Elpress product in the Electrical Components range.
- Is a datasheet available for 7167-503000?
- Yes — the 7167-503000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 7167-503000?
- The minimum order quantity is 1.
- Is 7167-503000 available?
- Yes — 7167-503000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
