Elpress KRT25-12 Copper Tube Cable Lug 25 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KRT25-12 — compression (crimp) tube cable lug for terminating 25 mm² copper conductor onto an M12 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Carries DNV type approval and UL listing (File E205350) within the tested Elpress crimp system. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 25 mm²
- Stud / bolt hole
- M12
- Conductor class
- Stranded (IEC 60228 Cl.2)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- DNV type approval, UL File E205350
- Manufacturer part number (MPN)
- KRT25-12
- EAN / GTIN
- 7393487007499
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
- Article number
- 7301-276400
- Type designation
- KRT25-12

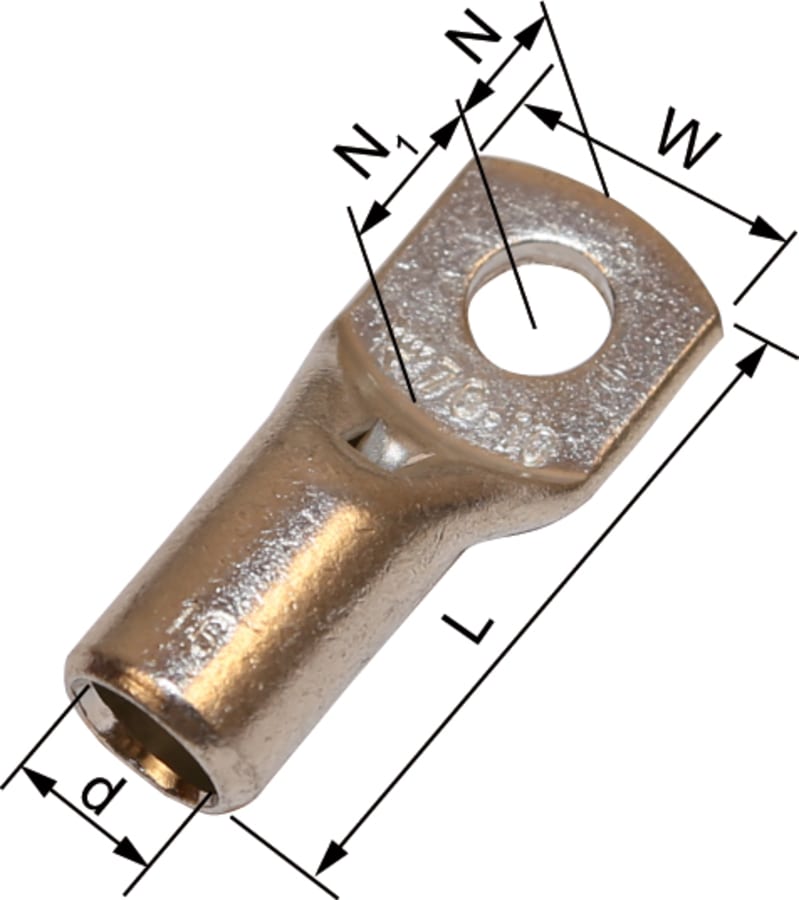

- W (mm)
- 19
- N (mm)
- 12
- N1 (mm)
- 13
- P (mm)
- 25
- d (mm)
- 7
- L (mm)
- 48
- t (mm) - palm thickness
- 2.1
- s (mm) - strip length
- 17
- Screw
- M12
- Inspection hole
- Yes
- AWG/MCM Cu
- 4 AWG
- mm² Cu
- 25
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Class 2 = stranded
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 12
- With sight-hole
- Yes
- AWG size
- 4
- Pieces per pack
- 100
- Net weight (kg)
- 0.014
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7393487007499
- SAP 1000416690
- Code 8970556
Product Documentation
More from Elpress
Elpress
KRFS150-8 (7301-291700)
Elpress
Elpress B1-8ET Uninsulated End Terminal, 1 mm²
Elpress
Round PIN HANN 1,5 mm² RED
A1504HA
Elpress
KR6-5-CP (7301-011403)
Elpress
Elpress KRT25-10 Copper Tube Cable Lug 25 mm² M10
Elpress
Elpress AKP150 Aluminium-Copper Bimetallic Pin Socket — 150 mm² Al Conductor, 15.8 mm Cu Pin
Elpress
Bakkeholder V2506
Elpress
Elpress A1535SKW-CP Duraseal Heat-Shrink Splice Sleeve
A1535skw-Cp
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRT25-12?
- KRT25-12 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KRT25-12.
- What is the HS code for KRT25-12?
- The customs tariff (HS) code for KRT25-12 is 8544.42.
- Who manufactures KRT25-12?
- KRT25-12 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KRT25-12?
- Yes — the KRT25-12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRT25-12?
- The minimum order quantity is 1.
- Is KRT25-12 available?
- Yes — KRT25-12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
