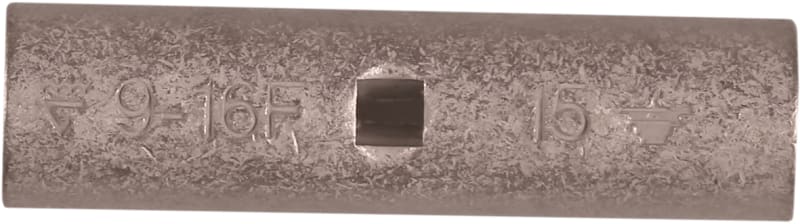

Elpress KSF16 Copper Compression Through Connector 16 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KSF16 — copper compression through connector (splice sleeve) for jointing 16 mm² copper conductors end to end. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a cable inspection hole and internal cable stop. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5/6) copper conductors. Crimped with matching Elpress dies to a gas-tight, low-resistance joint tested to IEC 61238-1. Approvals: UL File E205350, DNV type approval.
Technical Specifications
- Type
- Copper compression through connector (splice sleeve)
- Conductor cross-section
- 16 mm²
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5/6) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole, internal cable stop
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- UL File E205350, DNV type approval
- Manufacturer part number (MPN)
- KSF16
- EAN / GTIN
- 7393487007895
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487007895
- SAP 1000017868
- Code 8138255
Product Documentation
More from Elpress
Elpress
Elpress KSF300A Copper Compression Through Connector 300 mm²
Elpress
KRFS70-8 (7301-290500)
Elpress
Elpress Compression cable lug, KRF-series, 300 mm², M12 stud
7301-146300
Elpress
Elpress A1-10ET Insulated End Ferrule 1 mm² 10 mm
Elpress
Elpress KRFS95-8 Copper Tube Cable Lug, Narrow Palm 95 mm² M8
Elpress
Elpress AS150 Aluminium Compression Through Connector 150 mm²
Elpress
Elpress KS10 Copper Compression Through Connector 10 mm²
Elpress
Elpress AKK240-10 Aluminium-Copper Bimetallic Compression Cable Lug 240 mm² M10
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KSF16?
- KSF16 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KSF16.
- What is the HS code for KSF16?
- The customs tariff (HS) code for KSF16 is 8536.90.
- Who manufactures KSF16?
- KSF16 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KSF16?
- Yes — the KSF16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KSF16?
- The minimum order quantity is 1.
- Is KSF16 available?
- Yes — KSF16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
