Product Description

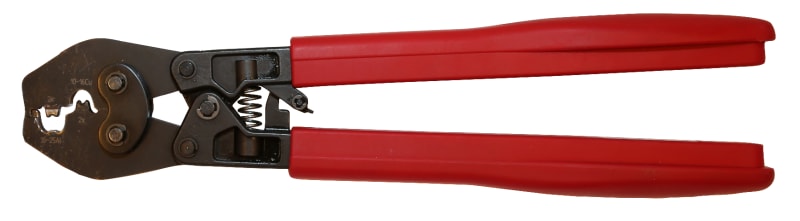

Elpress crimping tool, model EW1025. Part of the Elpress crimping tool system; dies, punches and crimp heads are matched by tool system and conductor cross-section.
Technical Specifications
- Manufacturer part number (MPN)
- EW1025
- EAN / GTIN
- 7393487049260
- Sales unit
- pcs
- Article number
- 5111-228000
- Type designation
- EW1025
- Ratchet function that does not trigger until completed crimp
- Yes
- Crimp geometries
- Punch
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Cu
- 8 - 6 AWG
- mm² Stranded Al
- 16-25
- mm² Cu
- 10-16
- Crimp range Cu-terminals min (mm²)
- 10
- Crimp range Cu-terminals max (mm²)
- 16
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 25
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Mechanic
- Compression shape
- Arbour clamping
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 25
- AWG-range, Min
- 7
- AWG-range, Max
- 3
- Number of included inserts
- 1
- Cycle time, Min (s)
- 0.45
- Compression force, Max (kN)
- 4.5
- Length (mm)
- 300
- Pieces per pack
- 1
- Net weight (kg)
- 0.678
- Height Pack (mm)
- 30
- Depth Pack (mm)
- 310
- Width Pack (mm)
- 90
- With locking device (for mechanical tools)
- Yes
- Cross section
- 10–25 mm²
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Cycle time
- 0.45 s
- Compression force
- 0–4.5 kN
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487049260
- SAP 1000679208
- Code 8576538
