Elpress
KRFS300A-10 (7301-292900)
Part number7301-292900EAN / GTIN7393487062160HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress 7301-292900 Cu tubular cable lug.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-292900
- EAN / GTIN
- 7393487062160
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Article number
- 7301-292900
- Type designation
- KRFS300A-10
- W (mm)
- 31
- N (mm)
- 15
- N1 (mm)
- 19
- P (mm)
- 34
- f (mm)
- 1.25
- d (mm)
- 24.5
- L1 (mm)
- 79
- L (mm)
- 94
- t (mm) - palm thickness
- 8.6
- s (mm) - strip length
- 40
- Screw
- M10
- Inspection hole
- Yes
- AWG/MCM Cu
- 550 MCM
- mm² Cu
- 300
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 10
- With sight-hole
- Yes
- Slender flange model
- Yes
- AWG size
- Other
- Pieces per pack
- 10
- Net weight (kg)
- 0.228
- Height Pack (mm)
- 80
- Depth Pack (mm)
- 140
- Width Pack (mm)
- 176
- Insulated
- No
- Nominal cross section
- 300 mm²
- Bolt dimension (metric)
- 10
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487062160
- SAP 1200123696
- Code 81977789
Product Documentation
Document preview: KRFS300A-10 (7301-292900) — Specification sheet
More from Elpress
Elpress
Elpress A2565G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M6 (Blue) 7278-271403
Elpress
Elpress AK185-12 Aluminium Compression Cable Lug 185 mm² M12
Elpress
Elpress KRT25-6 Copper Tube Cable Lug 25 mm² M6
Elpress
A4665R-CP (7278-262303)
Elpress

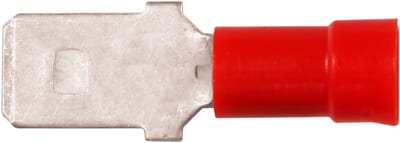

Elpress A1507H
Elpress

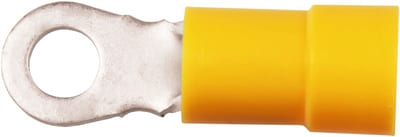

Elpress A4610R Ring Terminal, 4-6 mm²
Elpress

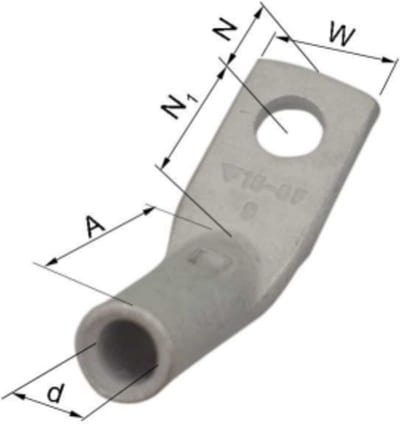

Elpress KRF120-10-45GR Copper 45° Angled Tube Cable Lug 120 mm² M10
Elpress

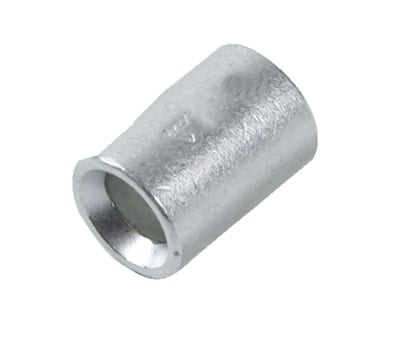

KS1,5P (7303-521100)
