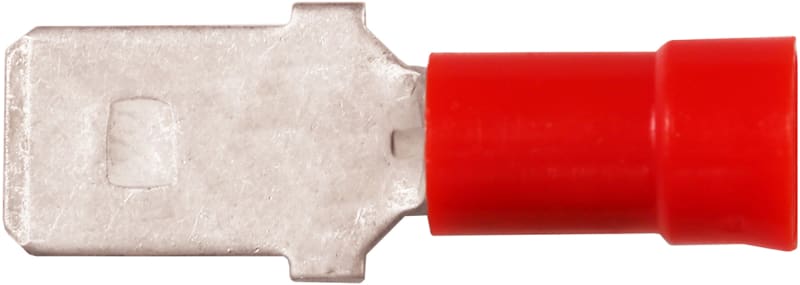

Elpress A1507H
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A1507H is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A1507H; W (mm): 6.3; d (mm): 4.1; L (mm): 22.
Technical Specifications
- Manufacturer part number (MPN)
- A1507H
- EAN / GTIN
- 7393487004870
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7459-341300
- Type designation
- A1507H
- W (mm)
- 6.3
- d (mm)
- 4.1
- L (mm)
- 22
- Insulation material
- PC
- Tab Size
- 6,3x0,8
- Insulation colour
- Red (insulated terminals)
- Material
- Brass/Cu, Cu/Sn
- Easy-entry
- Yes
- Tab
- 6,3x0,8
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 26 - 16 AWG
- mm² Cu
- 0,5-1,5
- s (mm) - strip length
- 7
- Model
- Plug (male)
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Colour insulation
- Red
- Plug dimensions
- Flat 6.3x0.8 mm
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Material insulation
- PC
- Pieces per pack
- 100
- Net weight (kg)
- 0.0009
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004870
- SAP 1000021488
- Code 8174678
Product Documentation
