Elpress
KRFS95-12 (7301-291100)
Part number7301-291100EAN / GTIN7393487062023HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress 7301-291100 Cu tubular cable lug.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-291100
- EAN / GTIN
- 7393487062023
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Article number
- 7301-291100
- Type designation
- KRFS95-12
- W (mm)
- 20
- N (mm)
- 12
- P (mm)
- 27
- f (mm)
- 1
- d (mm)
- 15
- L (mm)
- 64
- t (mm) - palm thickness
- 5.4
- s (mm) - strip length
- 25
- Screw
- M12
- Inspection hole
- Yes
- AWG/MCM Cu
- 3/0 AWG
- mm² Cu
- 95
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 12
- With sight-hole
- Yes
- Slender flange model
- Yes
- AWG size
- 000
- Pieces per pack
- 50
- Net weight (kg)
- 0.061
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
- Insulated
- No
- Nominal cross section
- 95 mm²
- Bolt dimension (metric)
- 12
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487062023
- SAP 1200123682
- Code 81977791
Product Documentation
Document preview: KRFS95-12 (7301-291100) — Specification sheet
More from Elpress
Elpress
Elpress KRF35-8-CP Copper Tube Cable Lug 35 mm² M8
Krf35-8-Cp
Elpress
Elpress B1003FLS5 Receptacle, Rolled Type, 0.5-1 mm²
Elpress
Elpress KRF150-12X2-40 Copper Two-Hole Tube Cable Lug 150 mm² M12
Elpress
A4607FLS-CP (7463-256003)
Elpress
Elpress KRF35-10-CP Copper Tube Cable Lug 35 mm² M10
Krf35-10-Cp
Elpress
Elpress KRF16-8-CP Copper Tube Cable Lug 16 mm² M8
Krf16-8-Cp
Elpress

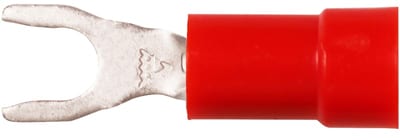

Elpress A1543G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M4 (Red)
Elpress

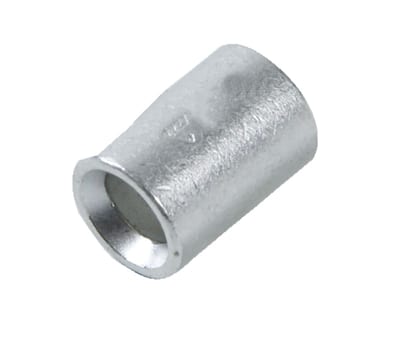

KS25P (7303-050500)
