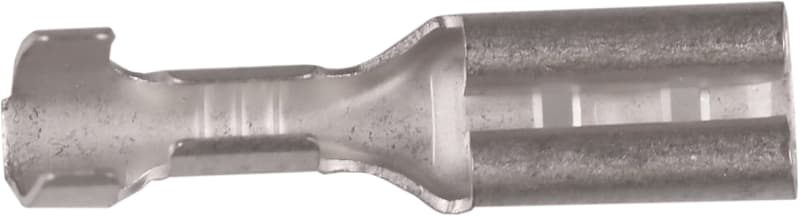

Elpress B1003FLS5 Receptacle, Rolled Type, 0.5-1 mm²
Part numberB1003FLS5EAN / GTIN7393487003514HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B1003FLS5 Uninsulated blade receptacle.
Technical Specifications
- Manufacturer part number (MPN)
- B1003FLS5
- EAN / GTIN
- 7393487003514
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7167-500100
- Type designation
- B1003FLS5
- e (mm)
- 6
- L (mm)
- 14
- t (mm) - palm thickness
- 0.25
- s (mm) - strip length
- 7
- Tab Size
- 2,8x0,5
- AWG/MCM Cu
- 20 - 18 AWG
- mm² Cu
- 0,5-1
- Model
- Sleeve
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Not isolated
- Material
- Brass
- AWG-range, Min
- 20
- AWG-range, Max
- 18
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1
- Pieces per pack
- 100
- Net weight (kg)
- 0.0002
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Plug dimensions
- Flat 2.8x0.5 mm
- Nominal cross section
- 0.5–1 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003514
- SAP 1000003366
- Code 819401
Product Documentation
Document preview: Elpress B1003FLS5 Receptacle, Rolled Type, 0.5-1 mm² — Specification sheet
