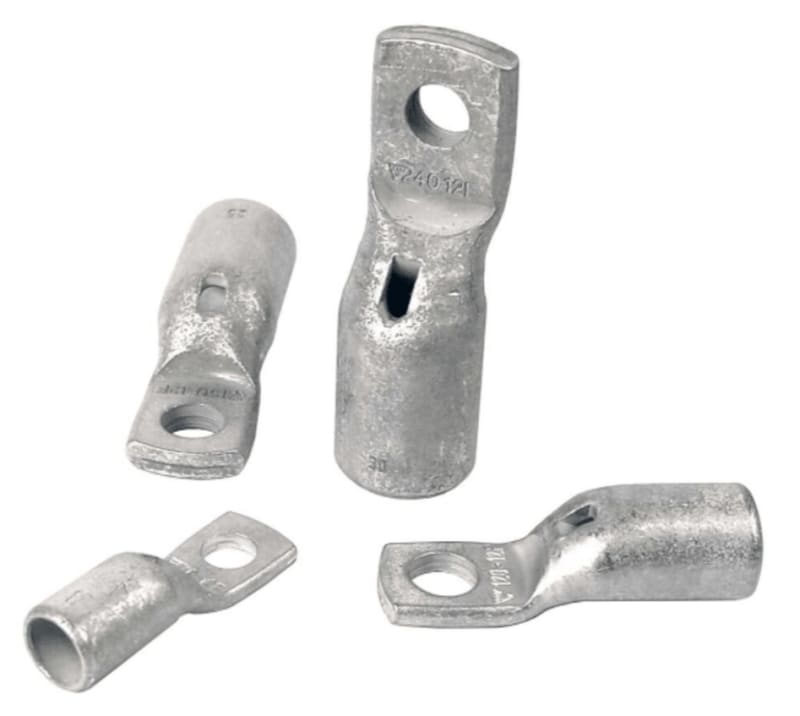

Elpress KRFS50-10 Copper Tubular Cable Lug 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress 7301-290200 (type KRFS50-10) is a tin-plated copper tubular cable lug for a 50 mm² conductor with an M10 bolt hole. The ring-shaped, slender palm has an inspection sight-hole and a 180° horizontal connection angle. Supplied in packs of 100 pieces.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-290200
- EAN / GTIN
- 7393487062344
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7301-290200
- Type designation
- KRFS50-10
- W (mm)
- 16.5
- N (mm)
- 11
- N1 (mm)
- 12.5
- P (mm)
- 23.5
- f (mm)
- 1.25
- d (mm)
- 11
- L (mm)
- 52
- t (mm) - palm thickness
- 3.8
- s (mm) - strip length
- 19
- Screw
- M10
- Inspection hole
- Yes
- AWG/MCM Cu
- 1/0 AWG
- mm² Cu
- 50
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 10
- With sight-hole
- Yes
- Slender flange model
- Yes
- AWG size
- 0
- Pieces per pack
- 100
- Net weight (kg)
- 0.026
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
- Insulated
- No
- Nominal cross section
- 50 mm²
- Bolt dimension (metric)
- 10
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487062344
- SAP 1200138009
- Code 82035536
Product Documentation
