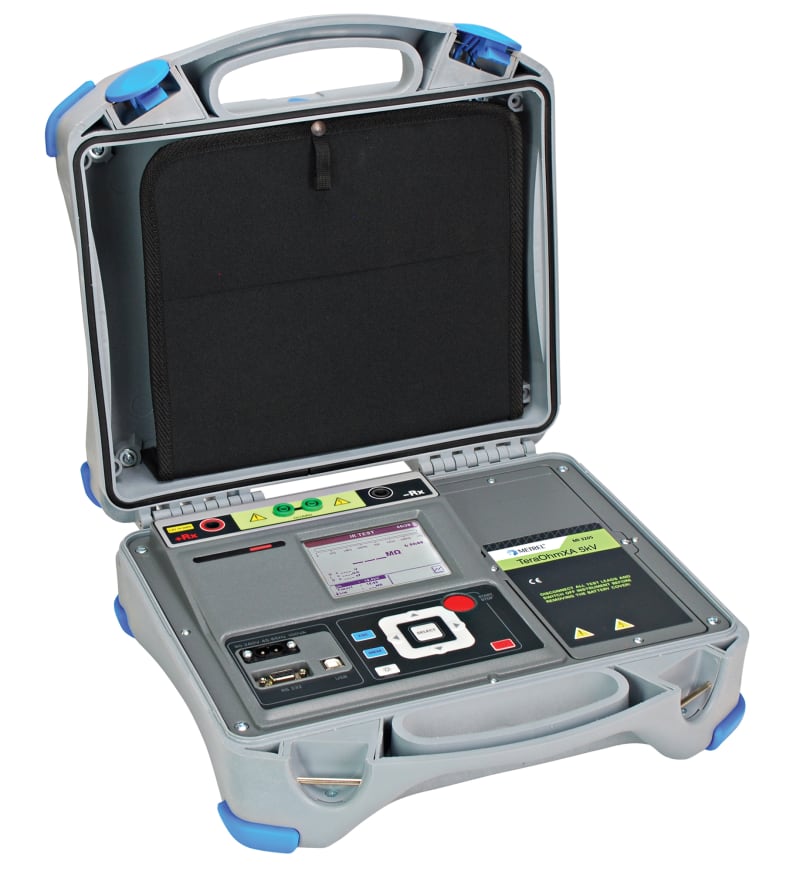

Metrel MI 3205 TeraOhm XA Digital 5 kV Insulation Tester
Pricing
Request a quote
We reply within 24 hours
Product Description
Metrel MI 3205 TeraOhm XA is a digital 5 kV high-voltage insulation tester with a measurement range of 0.01-15000000 MOhm and battery power supply. The instrument supports selectable nominal test voltages of 100, 250, 500, 1000, 2500 and 5000 V, low-resistance measurement, overvoltage protector testing, voltage measurement, and features an adjustable ramp function with external voltage detection at OFF-state. Typical applications include periodic testing of high-voltage cables, transformers, motors, and switchgear insulation.
Technical Specifications
- Manufacturer part number (MPN)
- 3831063424536
- EAN / GTIN
- 3831063424536
- Sales unit
- pcs
- Current supply
- Battery
- Measured value memory
- Yes
- Indication
- Graphic
- Isolation resistance measuring range
- 0.01–15000000 MOhm
- Low resistance measurement
- Yes
- Interface
- Yes
- Data hold
- Yes
- Background lighting LC-indication
- Yes
- Overvoltage protector testing
- Yes
- Analogue bar graph display
- Yes
- Nominal test voltage 100 V
- Yes
- Nominal test voltage 1000 V
- Yes
- Nominal test voltage 250 V
- Yes
- Nominal test voltage 2500 V
- Yes
- Nominal test voltage 500 V
- Yes
- Nominal test voltage 5000 V
- Yes
- Nominal test voltage adjustable
- Yes
- Voltage measurement
- Yes
- Nominal test voltage adjustable with ramp function
- Yes
- External voltage detection at OFF-state
- Yes
- Nominal test voltage 10 kV
- No
- Nominal test voltage 15 kV
- No
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 9030.33
Cross References
- EAN 3831063424536
- SAP 1200738627
- Code 83898375
