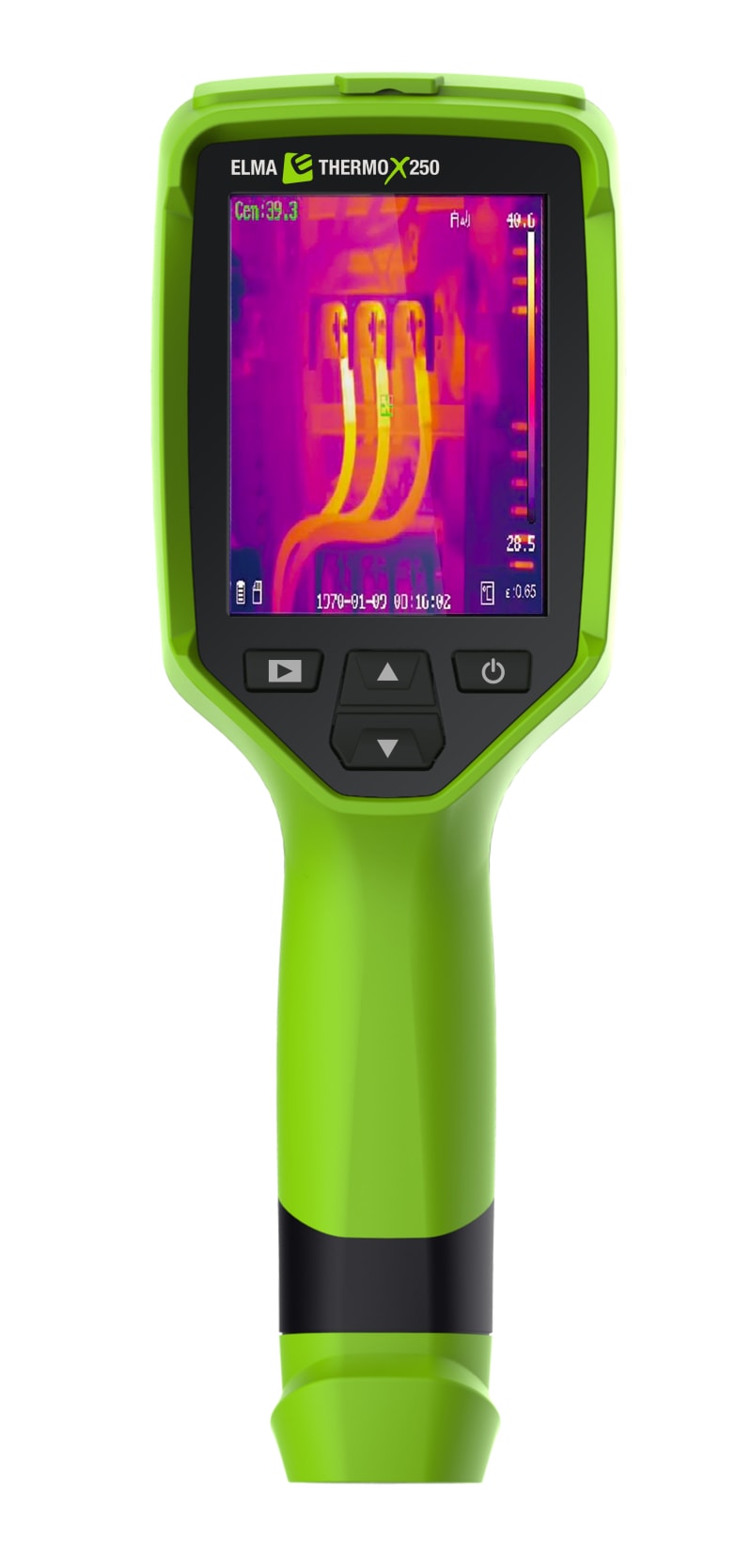

Elma Instruments Thermo X250 Thermal Imaging Camera, 256 x 192 px, -20 to 500 °C

Elma Instruments Thermo X250 is a thermal imaging camera with a 256 x 192 pixel infrared sensor and a temperature measuring range of -20 to 500 °C. Delivers thermal and visual imaging on a 4-inch display, with Wi-Fi connectivity, SD-card storage and a 42 x 56 degree field of view. Battery-powered with up to a 4-hour runtime.

Manufacturer part number (MPN)

5706445840779

EAN / GTIN

5706445840779

Sales unit

pcs

Sensor resolution (horizontal)

192 px

Display diagonal

4 inch

With touch screen

No

Thermal image

Yes

Visual image

Yes

Thermal-/visual image (in one image)

Yes

Video recording

No

Frames per second (fps)

4

Thermal sensitivity at 30 °C

4 °C

Temperature measuring range

-20–500 °C

Field of view (FOV) horizontal

42 °

Field of view (FOV) vertical

56 °

Instantaneous field of view (IFOV)

5.4 m row

Auto focus

No

Auto orientation

No

Focus stacking

Yes

Image averaging

No

Digital zoom

1

Increase image size

No

With memory function

Yes

Internal memory

Yes

SD-card slot

Yes

MiniSD-card slot

No

MicroSD-card slot

No

CompactFlash I card slot

No

CompactFlash II card slot

No

USB connection

Yes

Bluetooth interface

No

Wi-Fi-compatible

Yes

Analogue video out

No

HDMI-connection

No

Ethernet

No

Gigabit Ethernet

No

With communication interface RS-232

No

With communication interface RS-485

No

FireWire (IEEE1394) connection

No

Detector cooled

No

Ambient temperature

-10–50 °C

With laser

No

With built-in torch

No

With stand holder

No

Suitable for exchangeable lenses

No

With digital alarm

No

With humidity sensor

No

With laser distance measurement

No

Battery powered

Yes

External power supply required

No

Input voltage AC 50 Hz

230–240 V

Input voltage AC 60 Hz

230–240 V

Input voltage DC

5–7 V

Power consumption

1 W

Max. battery duration

4 h

Weight

0.48 kg

Country of origin

China

HS Code

9027.50

• EAN 5706445840779
• SAP 1200824592
• Code 84007381
