Elma Instruments

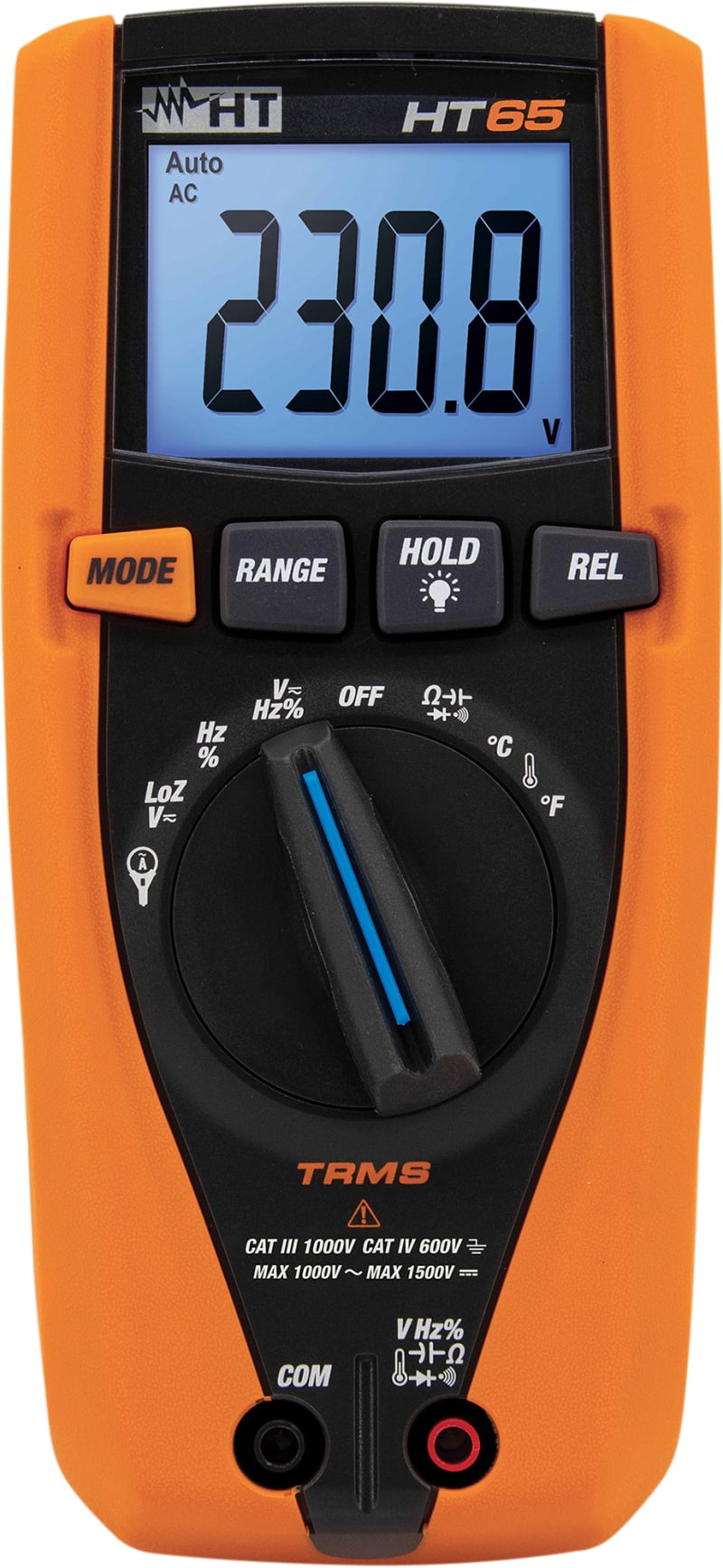

HT65 multimeter 1500VDC/1000VAC
Part number8052870678669EAN / GTIN8052870678669HS code9030.31
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 8052870678669 HT65 multimeter 1500VDC/1000VAC 1500V DC scale well-suited for e.g. Solceller.
Technical Specifications
- Manufacturer part number (MPN)
- 8052870678669
- EAN / GTIN
- 8052870678669
- Sales unit
- pcs
- Voltage
- 1500 V DC
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Isolation resistance measuring range
- 0–40 MOhm
- Interface
- No
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.1 mV
- Lowest resolution, AC voltage
- 0.001 mV
- Lowest resolution, AC current
- 100 µA
- Lowest resolution, resistance
- 0.1 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 1000 V
- Max. voltage measuring range DC
- 1500 V
- Max. current measuring range, AC
- 1000 A
- Max. current measuring range, DC
- 1000 A
- Max. resistance measuring range
- 40 MOhm
- Max. value storage
- Yes
- Multiple display
- No
- Measuring circuit category
- CAT IV
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- Yes
- Duty cycle measurements
- Yes
- Degree of protection (IP)
- IP40
- Temperature measurement
- Yes
- Max. temperature measuring range
- 760 °C
- Lowest resolution temperature
- 1 °C
- Max. capacitance measuring range
- 40000 µF
- Lowest resolution, capacitance
- 0.00001 µF
- Max. frequency measuring range
- 10000 kHz
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- Yes
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 1000 V
- With display backlight
- Yes
- Scaling bar graph linear
- No
- Scaling bar graph logarithmic
- No
- Max. current measuring range with clip factor
- 1000 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.31
Cross References
- EAN 8052870678669
- SAP 1200584943
- Code 82954808
Product Documentation
Document preview: HT65 multimeter 1500VDC/1000VAC (8052870678669) — Specification sheet
More from Elma Instruments
Elma Instruments

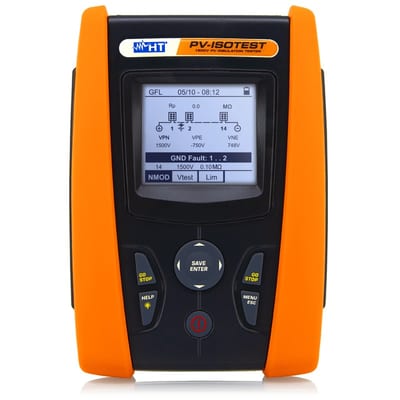

HT PV-Isotest insulation tester for solar cells
8052870670427
Elma Instruments

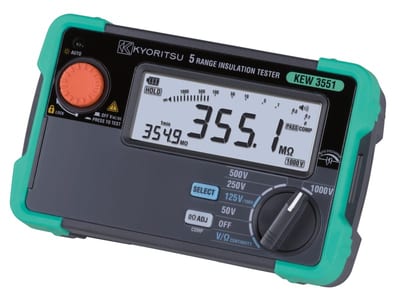

Insulation Tester Kyoritsu 3551
4560187066917
Elma Instruments

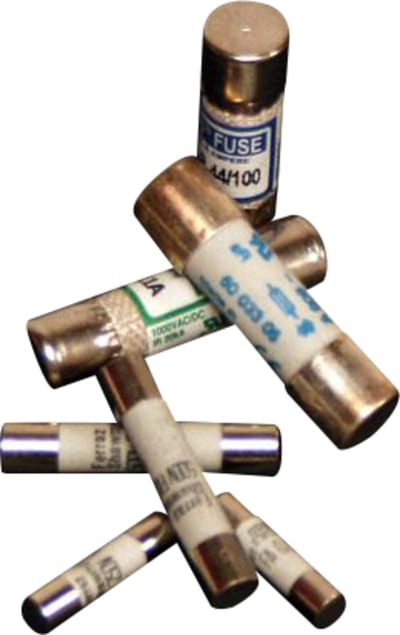

Fuse 630MA (6398895206)
Elma Instruments

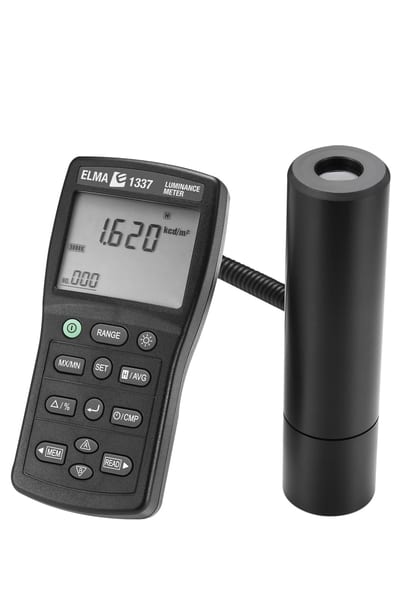

Elma 1337 Digital Luminance Meter with Data Logging
