Elma 6100EVSE Multimeter with CP EVSE
Part numberMultimeter Elma 6100EVSEEAN / GTIN5706445840656HS code9030.89
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

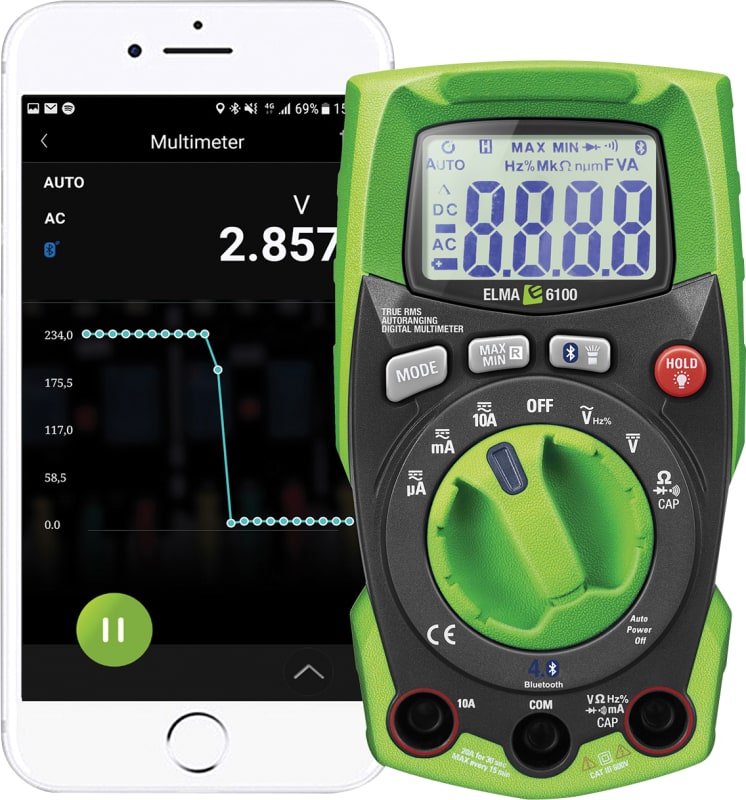

Elma Instruments Multimeter Elma 6100EVSE True RMS AC/DC multimeter with (CP) for reading the charging current via an EVSE adapter on charging stations.
Technical Specifications
- Manufacturer part number (MPN)
- Multimeter Elma 6100EVSE
- EAN / GTIN
- 5706445840656
- Sales unit
- pcs
- Current supply
- Battery
- Measured value memory
- Yes
- Indication
- Digital
- Measuring range selection
- Automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- Yes
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- No
- Bluetooth interface
- Yes
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.001 mV
- Lowest resolution, DC current
- 0.001 µA
- Lowest resolution, AC voltage
- 0.001 mV
- Lowest resolution, AC current
- 0.001 µA
- Lowest resolution, resistance
- 0.001 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 60 MOhm
- Max. value storage
- Yes
- Multiple display
- Yes
- Measuring circuit category
- CAT III
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- Yes
- Duty cycle measurements
- No
- Temperature measurement
- No
- Max. capacitance measuring range
- 6000 µF
- Lowest resolution, capacitance
- 0.001 µF
- Max. frequency measuring range
- 9999 kHz
- Lowest resolution, frequency
- 0.1 Hz
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- Yes
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 230 V
- With display backlight
- Yes
- Scaling bar graph linear
- No
- Scaling bar graph logarithmic
- No
- Max. current measuring range with clip factor
- 3000 A
- Max. current measuring range, AC/DC
- 10 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.89
Cross References
- EAN 5706445840656
- SAP 1200556111
- Code 82901318
Product Documentation
Document preview: Elma 6100EVSE Multimeter with CP EVSE (Multimeter Elma 6100EVSE) — Specification sheet
