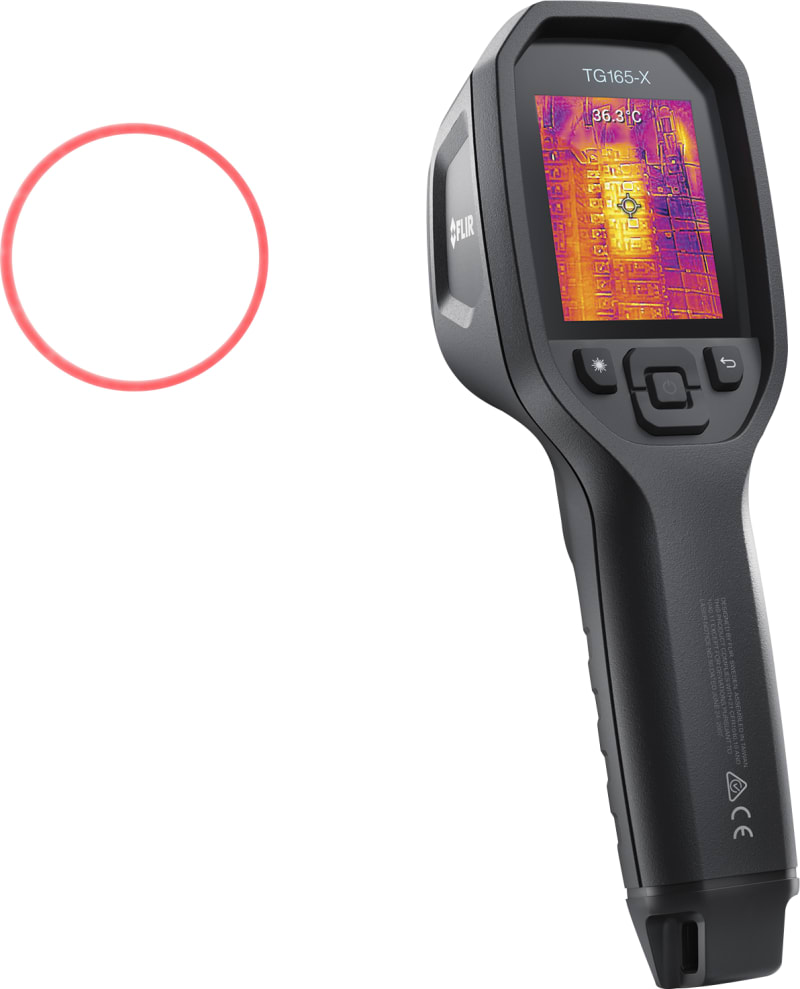

FLIR TG165-X IR thermometer with IGM
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 7332558023822 FLIR TG165-X IR thermometer with IGM 80 x 60 pixel / –25°C for 300°C with 2MP fotokamera and MSX.
Technical Specifications
- Manufacturer part number (MPN)
- 7332558023822
- EAN / GTIN
- 7332558023822
- Sales unit
- pcs
- Sensor resolution (horizontal)
- 80 px
- Display resolution (horizontal)
- 320 px
- Display diagonal
- 6 inch
- With touch screen
- No
- Thermal image
- Yes
- Visual image
- Yes
- Thermal-/visual image (in one image)
- Yes
- Video recording
- No
- Frames per second (fps)
- 8.7
- Thermal sensitivity at 30 °C
- 0.07 °C
- Temperature measuring range
- -20–300 °C
- Relative measurement accuracy
- 2.5 %
- Wave band
- 7.5–14 µm
- Field of view (FOV) horizontal
- 51 °
- Field of view (FOV) vertical
- 66 °
- Auto focus
- No
- Auto orientation
- Yes
- Focus stacking
- No
- Image averaging
- No
- Digital zoom
- 1
- Increase image size
- No
- With memory function
- Yes
- Internal memory
- Yes
- SD-card slot
- No
- MiniSD-card slot
- No
- MicroSD-card slot
- No
- CompactFlash I card slot
- No
- CompactFlash II card slot
- No
- USB connection
- Yes
- Bluetooth interface
- No
- Wi-Fi-compatible
- No
- Analogue video out
- No
- HDMI-connection
- No
- Ethernet
- No
- Gigabit Ethernet
- No
- With communication interface RS-232
- No
- With communication interface RS-485
- No
- FireWire (IEEE1394) connection
- No
- Detector cooled
- No
- Ambient temperature
- -10–45 °C
- With laser
- Yes
- With built-in torch
- Yes
- With stand holder
- Yes
- Suitable for exchangeable lenses
- No
- With digital alarm
- No
- With humidity sensor
- No
- With laser distance measurement
- No
- Battery powered
- Yes
- External power supply required
- No
- Input voltage AC 50 Hz
- 110–230 V
- Input voltage AC 60 Hz
- 110–230 V
- Input voltage DC
- 5 V
- Power consumption
- 1 W
- Max. battery duration
- 5 h
- Degree of protection (IP)
- IP54
- Weight
- 0.394 kg
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 9025.19
Cross References
- EAN 7332558023822
- SAP 1200483639
- Code 82574869
Product Documentation
More from Elma Instruments
Elma Instruments
Test Lead 2711 Silicone 100 cm Black
5703317459916
Elma Instruments
Testprobe for Elma BM878 & fjernbetjn
5706445410033
Elma Instruments
Kyoritsu KEW2510 (Kyoristu KEW 2510)
Elma Instruments
Elma Instruments R180002 Trend Networks Tone Generator
Elma Instruments

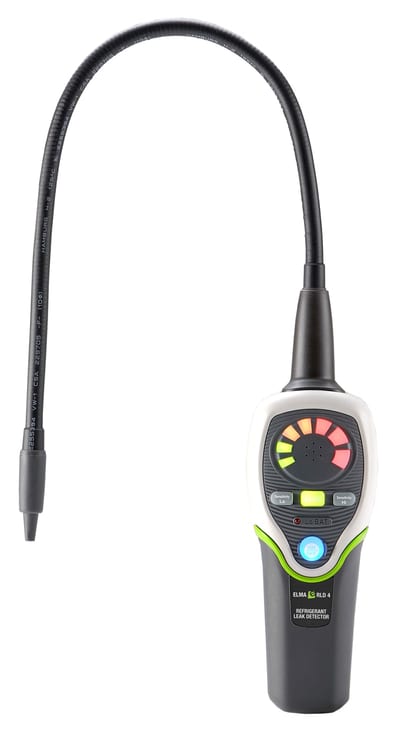

Elma RLD4 Refrigerant Leak Detector
Elma Instruments
HIK ECO-V Thermal imaging camera 96X96 SuperIR
6974004642921
Elma Instruments

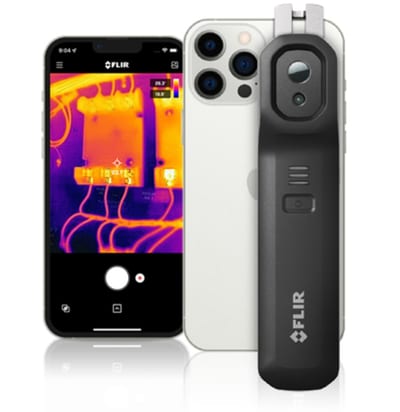

FLIR One Edge (80X60 pixel)
4743254006065
Elma Instruments

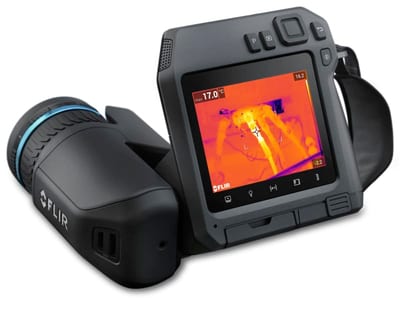

FLIR T560 Thermal imaging camera (24° lens)
