HIK ECO-V Thermal imaging camera 96X96 SuperIR
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 6974004642921 HIK ECO-V Thermal imaging camera-96x96 pixel, SuperIR and visuelt camera.
Technical Specifications
- Manufacturer part number (MPN)
- 6974004642921
- EAN / GTIN
- 6974004642921
- Sales unit
- pcs
- Sensor resolution (horizontal)
- 96 px
- Display resolution (horizontal)
- 320 px
- Display diagonal
- 2.4 inch
- With touch screen
- No
- Thermal image
- Yes
- Visual image
- Yes
- Thermal-/visual image (in one image)
- Yes
- Video recording
- No
- Frames per second (fps)
- 1
- Thermal sensitivity at 30 °C
- 0.05 °C
- Temperature measuring range
- -20–550 °C
- Relative measurement accuracy
- 2 %
- Wave band
- 7.5–14 µm
- Field of view (FOV) horizontal
- 50 °
- Field of view (FOV) vertical
- 50 °
- Instantaneous field of view (IFOV)
- 8.89 m row
- Auto focus
- Yes
- Auto orientation
- Yes
- Focus stacking
- No
- Image averaging
- No
- Digital zoom
- 1
- Increase image size
- No
- With memory function
- Yes
- Internal memory
- Yes
- SD-card slot
- No
- MiniSD-card slot
- No
- MicroSD-card slot
- No
- CompactFlash I card slot
- No
- CompactFlash II card slot
- No
- USB connection
- Yes
- Bluetooth interface
- No
- Wi-Fi-compatible
- No
- Analogue video out
- No
- HDMI-connection
- No
- Ethernet
- No
- Gigabit Ethernet
- No
- With communication interface RS-232
- No
- With communication interface RS-485
- No
- FireWire (IEEE1394) connection
- No
- Detector cooled
- No
- Ambient temperature
- -10–50 °C
- With laser
- No
- With built-in torch
- No
- With stand holder
- No
- Suitable for exchangeable lenses
- No
- With digital alarm
- No
- With humidity sensor
- No
- With laser distance measurement
- No
- Battery powered
- Yes
- External power supply required
- No
- Input voltage DC
- 5 V
- Power consumption
- 0.1 W
- Max. battery duration
- 8 h
- Degree of protection (IP)
- IP54
- Weight
- 0.29 kg
- Country of origin
- China
Standards & Compliance
- HS Code
- 9027.50
Cross References
- EAN 6974004642921
- SAP 1200788232
- Code 83957425
Product Documentation
More from Elma Instruments
Elma Instruments
FLIR One Edge (80X60 pixel)
4743254006065
Elma Instruments
FLIR T560 Thermal imaging camera (24° lens)
7332558026311
Elma Instruments
HT In-V 500W solar panel
8033100848038
Elma Instruments
Leica Disto D110 (8062860)
Elma Instruments

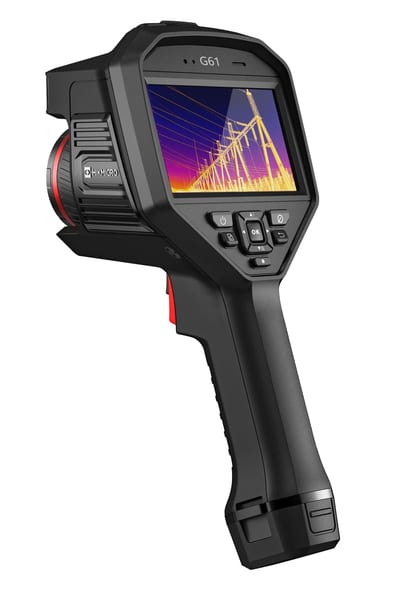

HIK G61 Thermal imaging camera 640×480PX
6974004642471
Elma Instruments

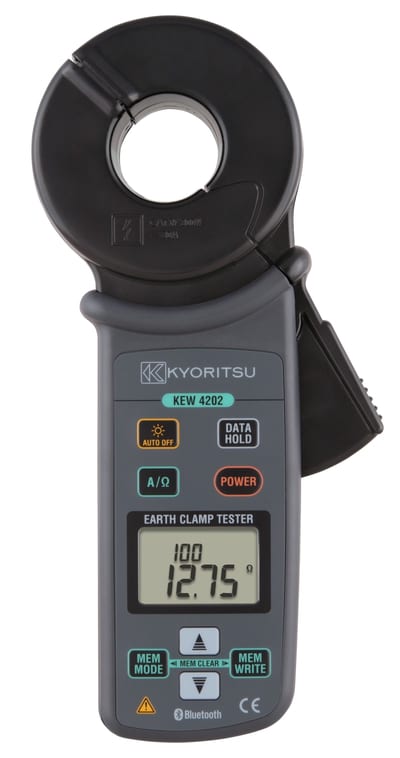

earth system pliers
Kyoritsu 4202BT
Elma Instruments

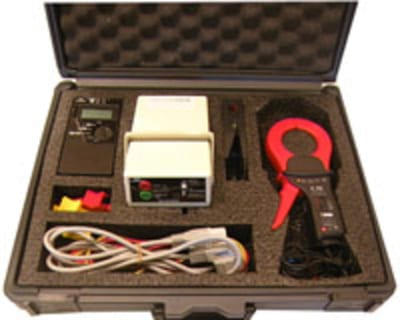

Elma Instruments 4000/C173 Earth-Fault Locator with Medium Clamp
8022340
Elma Instruments

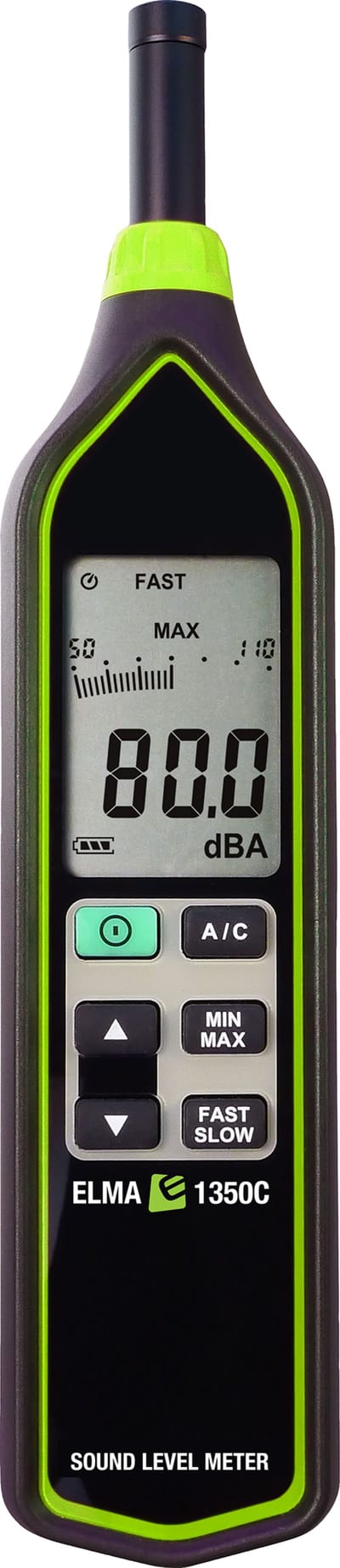

LYD Meter, ELMA 1350
