ELKO

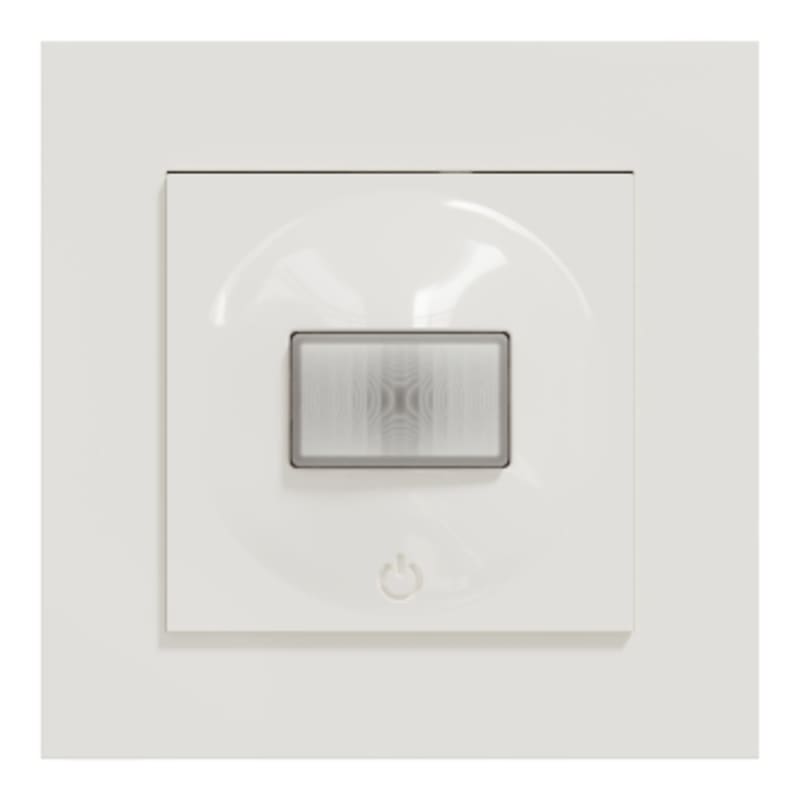

SMARTPIR Dim Multiwire Plus POLAR WHITE
Part numberEKO07250EAN / GTIN7020160725004HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO - PIR with pressure dimmer - Plus Polar-white - min 0W with optional neutral, 7W without - max 200W.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07250
- EAN / GTIN
- 7020160725004
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Product segment
- Smart home
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 86 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 86 mm
- Depth
- 44 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 27 mm
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- Yes
- Built-in width
- 45 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- Yes
- Material quality
- Thermoplastic
- Max. reach frontally
- 8 m
- Max. reach sideways
- 6 m
- Max. switching power
- 200 W
- Temperature
- 5–45 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- Yes
- Response value luminosity
- 5–500 lx
- Suitable for C-load
- No
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 9010
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- Yes
- Forced switch off
- Yes
- Scan angle
- 160 °
- Built-in length
- 45 mm
- Impact strength
- IK02
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–160 °
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 1 m
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. depth of built-in installation box
- 30 mm
- Max. presence range
- 86 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160725004
- SAP 1200619134
- Code 83027378
Product Documentation
Document preview: SMARTPIR Dim Multiwire Plus POLAR WHITE (EKO07250) — Specification sheet
More from ELKO
ELKO

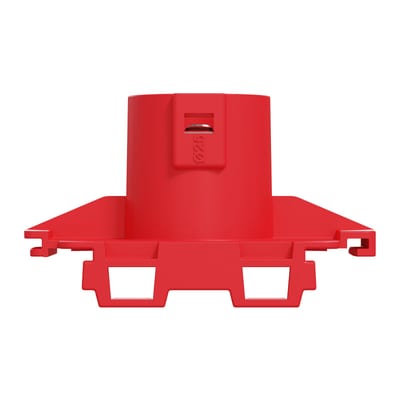

Single spigot 25mm (EKO07426)
ELKO

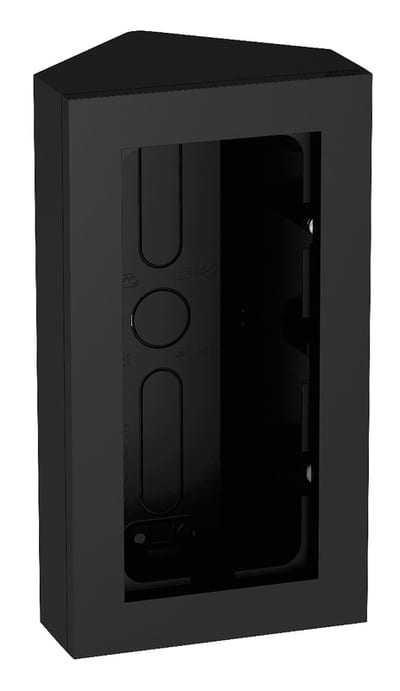

ELKO Plus Double Surface-Mount Corner Cap, Black
EKO04615
ELKO
ELKO BF 120 Motion Sensor IP55
EKO05212
ELKO

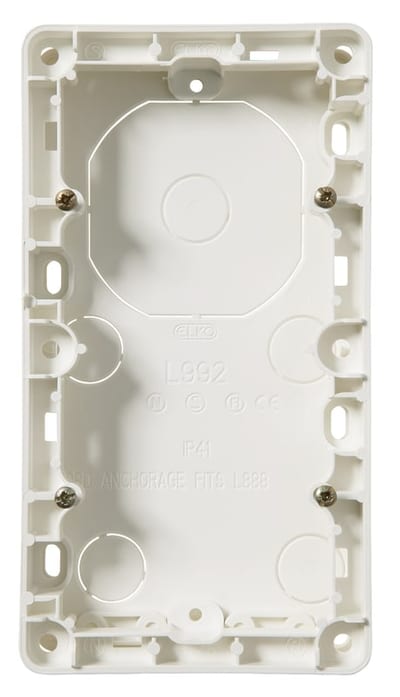

WALL-Mounted Cover Double H=18mm POLAR WHITE
EKO09380
ELKO

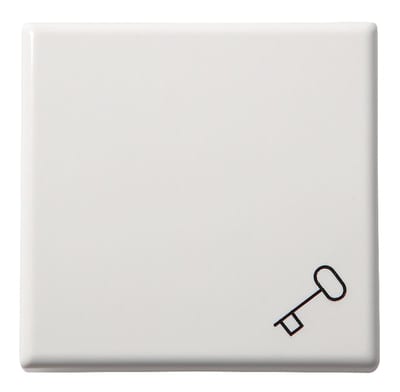

ELKO Rocker with Key Symbol Polar White Halogen-Free
EKO09199
ELKO

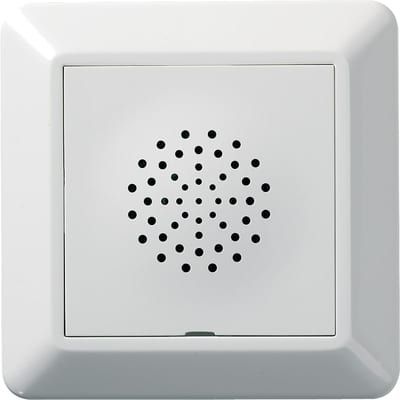

ELKO RS16 Flush-Mounted Door Bell 24 V AC/DC Polar White
EKO04845
ELKO

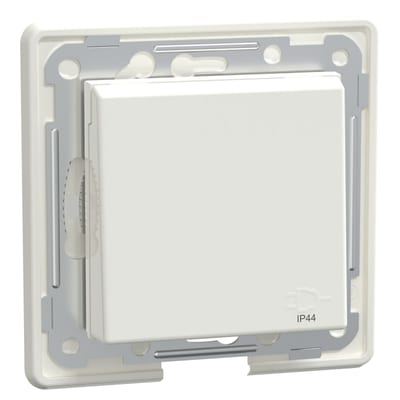

Single socket with cover quick-connect IP44 RS/Plus POLAR WHITE
EKO60031
ELKO

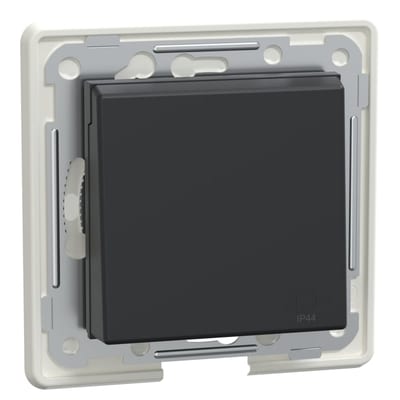

Single socket with cover quick-connect IP44 RS/Plus Black
