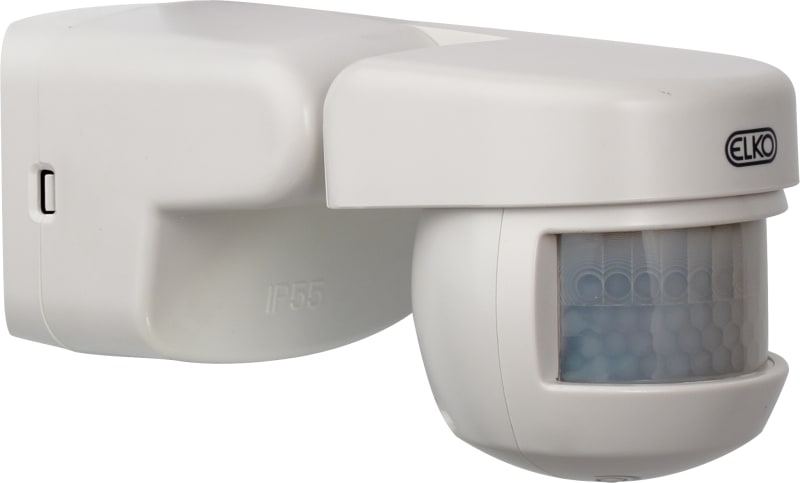

ELKO BF 120 Motion Sensor IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO05212 is a 120° PIR motion sensor in an IP55-rated enclosure for exposed or damp locations. It switches loads up to 1000 W at 230 V AC 50 Hz across a 12 m detection reach with adjustable luminance response (5-2000 lx) and an 1800 s switch-off delay. Suitable for surface mounting at an optimum height of 2.5 m, it supports constant-light control and adjustable sensitivity. Typical applications include external lighting control and outdoor luminaires where a sealed presence sensor is required.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05212
- EAN / GTIN
- 7020160521217
- Sales unit
- pcs
- Package quantity
- 24 pcs
- IP rating
- IP55
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 80 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 90 mm
- Depth
- 170 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 12 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Temperature
- -15–40 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- No
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 7035
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 120 °
- With connection cable
- No
- Degree of protection (IP)
- IP55
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–120 °
- Min. switch-on time
- 3 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, horizontal
- 0–160 °
- Pivoting range sensor, vertical
- 0–180 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 10 A
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 100 W
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160521217
- SAP 1000324947
- Code 81291805
Product Documentation
More from ELKO
ELKO
WALL-Mounted Cover Double H=18mm POLAR WHITE
EKO09380
ELKO
ELKO Rocker with Key Symbol Polar White Halogen-Free
EKO09199
ELKO
ELKO RS16 Flush-Mounted Door Bell 24 V AC/DC Polar White
EKO04845
ELKO
Single socket with cover quick-connect IP44 RS/Plus POLAR WHITE
EKO60031
ELKO
Single socket with cover quick-connect IP44 RS/Plus Black
EKO70001
ELKO

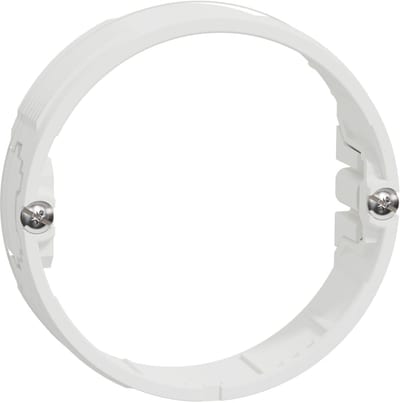

threaded LOW RING Single BOX
EKO10458
ELKO

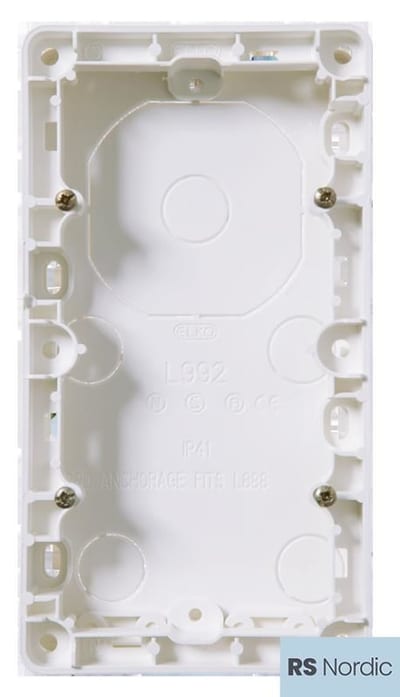

Double jacket 20mm RS PURE WHITE
EKO30188
ELKO

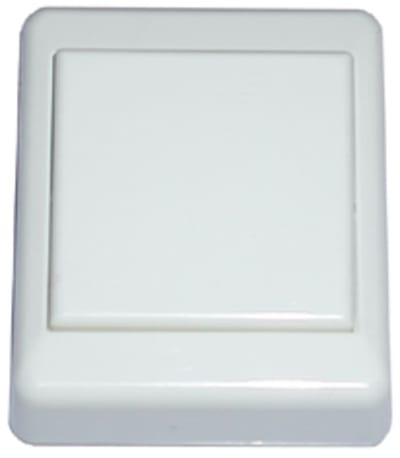

Switch 1-P Surface H 16/ 1 P
