ELKO

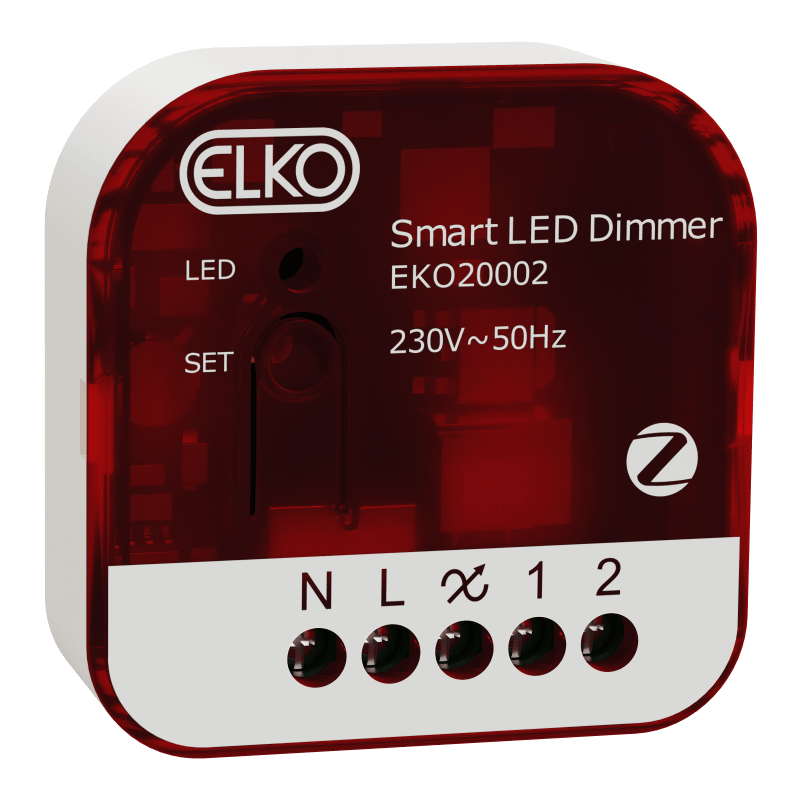

SmartDim puck Multiwire
Part numberEKO20002EAN / GTIN7020160200020HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO20002 Connected dimmer, ELKO, mikromodul, 200W, multiwire, LED, ZigBee.
Technical Specifications
- Manufacturer part number (MPN)
- EKO20002
- EAN / GTIN
- 7020160200020
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Colour
- White
- Halogen free
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.25 W
- Frequency
- 50–60 Hz
- Type of load
- Capacitive load
- Light value memory
- Yes
- Substation input
- Yes
- Serial dimmer
- No
- Applicable with movement sensor
- No
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK02
- Nominal voltage
- 230 V
- Transparent
- Yes
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1.5–2.5 mm²
- Device width
- 45 mm
- Device height
- 45 mm
- Device depth
- 18.5 mm
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 25 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 0–300 W
- Nominal power capacitive load
- 0–300 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 200 W
- Min. brightness controllable
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160200020
- SAP 1200736140
- Code 83868789
Product Documentation
Document preview: SmartDim puck Multiwire (EKO20002) — Specification sheet
More from ELKO
ELKO
ELKO EKO07683 RS Double Socket Outlet without Earth, Plus Surface-mounted
ELKO
ELKO EKO09749 L858 Large Key Symbol Rocker Polar White
ELKO
Time Switch Set 16A 2P cable POLAR WHITE
EKO07087
ELKO
RS/PLUS Mod.outlet 1X8 Cat 6 UTP LSA POLAR WHITE
EKO60014
ELKO
Plus 315 LED Dimmer Black
EKO07150
ELKO
Plug 25/2+J Flat Plug 25 WHITE
EKO03910
ELKO
PLUS Centre Plate SEALED POLAR WHITE
EKO03784
ELKO

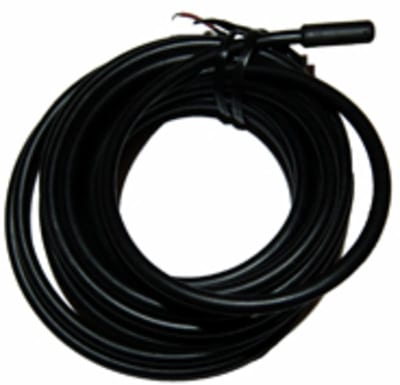

Floor sensor RS/PLUSTERM10.KOHM
