ELKO

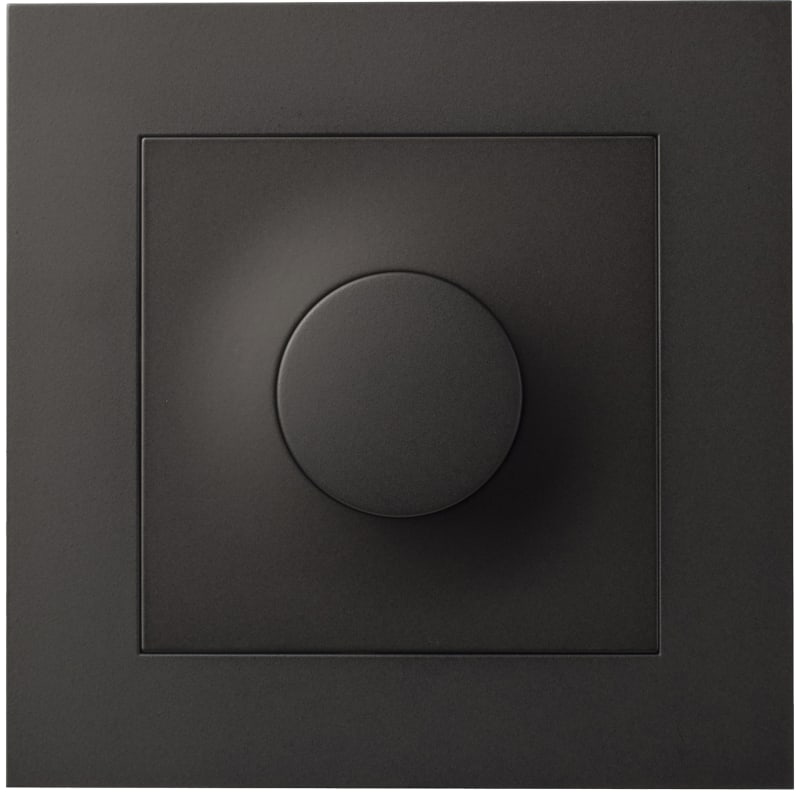

Plus 315 LED Dimmer Black
Part numberEKO07150EAN / GTIN7020160715005HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO07150 315 LED dimmer for LED, capacitive and resistive loads. Trailing-edge (phase cut-off) dimming at 230 V, 3-370 W resistive and 3-370 VA capacitive, up to 200 W of LED load.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07150
- EAN / GTIN
- 7020160715005
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Method of operation
- Turn/push button
- Colour
- Black
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Lacquered
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Capacitive load
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- No
- Substation input
- Yes
- RAL-number (similar)
- 9005
- Serial dimmer
- No
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- No
- Impact strength
- IK02
- Nominal power
- 0–370 VA
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1–2.5 mm²
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 47 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 25 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 3–370 W
- Nominal power capacitive load
- 3–370 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 200 W
- Min. brightness controllable
- No
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160715005
- SAP 1200535168
- Code 82696375
Product Documentation
Document preview: Plus 315 LED Dimmer Black (EKO07150) — Specification sheet
