ELKO

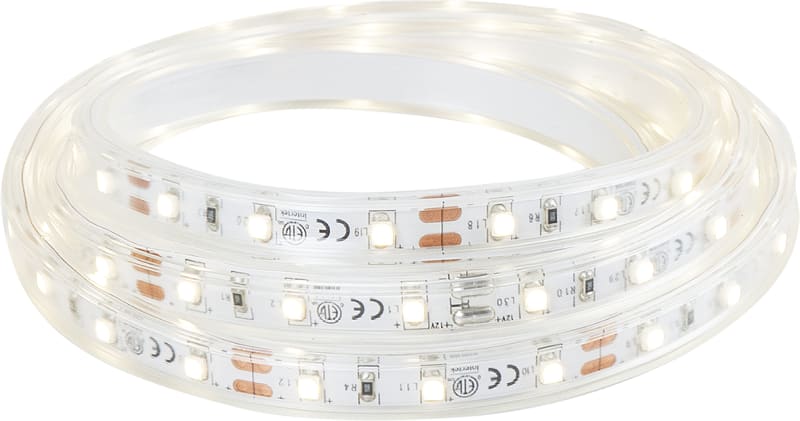

LED-strip R IP67 12V 3000K 5M
Part number7501315EAN / GTIN7392971125602HS code8539.52
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO 7501315 LED-strip with RA>90, wattage 4,8W/m and 255lm/m, service life (L) 50 000t. Supplied in length on 5 m. 12V DC.
Technical Specifications
- Manufacturer part number (MPN)
- 7501315
- EAN / GTIN
- 7392971125602
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Voltage
- 12 V
- IP rating
- IP67
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 60
- Number of nodes per foot
- 18
- Lamp power per meter
- 4.8 W
- Lamp power per foot
- 1 W
- Luminous flux per meter
- 255 lm
- Colour
- White
- Voltage type
- DC
- Lamp voltage
- 12 V
- Beam angle
- 120 °
- Height
- 6 mm
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 40000 h
- Degree of protection (IP)
- IP67
- Protection class according to IEC 61140
- III
- Max. system power
- 26.4 W
- Colour of light
- White
- Colour temperature
- 3000 K
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Width
- 10 mm
- Height/depth
- 6 mm
- Length
- 5000 mm
- Lowest bending radius
- 10 mm
- Length of particular segments
- 100 mm
- With end piece
- Yes
- With connection set
- Yes
- With protective cover
- Yes
- Self-adhesive
- Yes
- Type of wiring
- Loop-through wiring included
- Number of poles
- 2
- Conductor cross section
- 0.5 mm²
- Connection type
- Solder
- Country of origin
- China
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 7392971125602
- SAP 1000691678
- Code 8101060
Product Documentation
Document preview: LED-strip R IP67 12V 3000K 5M (7501315) — Specification sheet
