ELKO

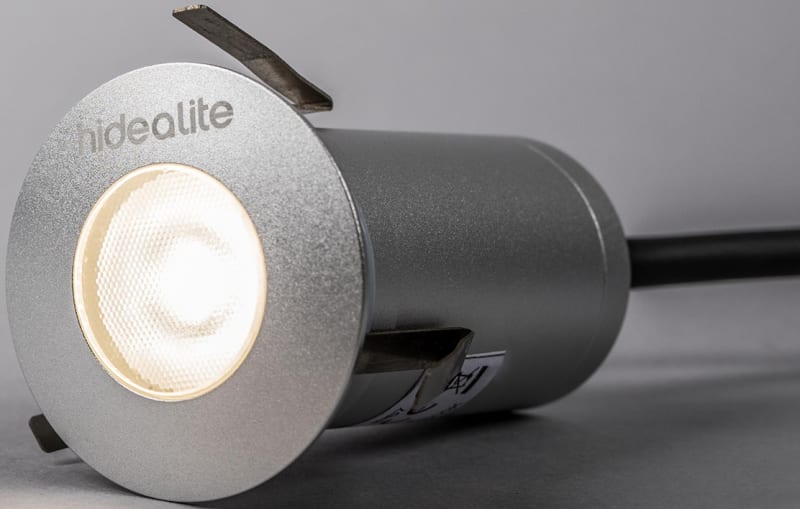

Decklight Super 230V 45°
Part number7764705EAN / GTIN7392971135014HS code9405.42
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO 7764705 Decklight 230V 45° 3000K 270lm, Ra>90, SDCM3, 4,5W. Integrated phase-dimmable driver 2m rubber cable.
Technical Specifications
- Manufacturer part number (MPN)
- 7764705
- EAN / GTIN
- 7392971135014
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 230 V
- Protection class according to IEC 61140
- I
- Outer diameter
- 51 mm
- Lamp holder
- None
- Conductor cross section
- 1.5 mm²
- Housing colour
- Aluminium
- Dimmable
- Yes
- Voltage type
- AC
- Type of control gear
- Not required
- Adjustable
- No
- Colour rendering index CRI
- 90-100
- Built-in diameter
- 44 mm
- Number of poles
- 3
- Height/depth
- 81 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Electrical connection with connector system
- No
- Light distribution
- Symmetric
- Material cover
- Plastic, structured
- Over rollable
- No
- Nominal voltage
- 230 V
- Degree of protection (IP)
- IP67
- With light source
- Yes
- Max. load
- 500 kg
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- 41-80° - Wide beam
- Colour temperature
- 3000 K
- Max. system power
- 4.5 W
- Rated luminous flux according to IEC 62722-2-1
- 270 lm
- Colour of light
- White
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 90000 h
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- Yes
- No dim function
- No
- Light distributor
- Focal lens
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Built-in height/depth
- 78 mm
- Device emplacement
- Outdoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7392971135014
- SAP 1200140989
- Code 81999563
Product Documentation
Document preview: Decklight Super 230V 45° (7764705) — Specification sheet
