ELKO

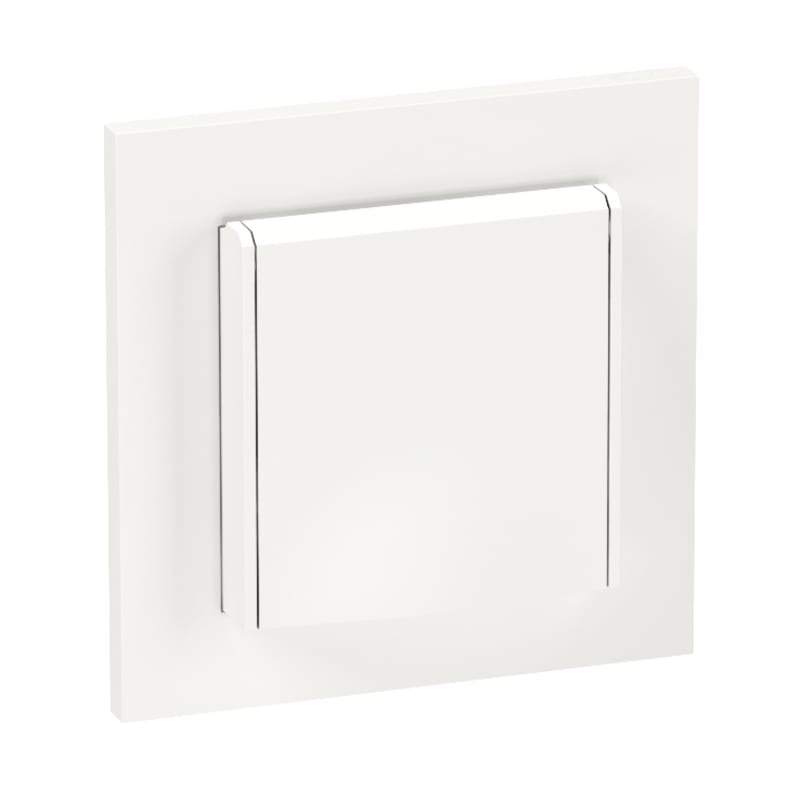

Plus single socket IP44 POLAR WHITE
Part numberEKO04617EAN / GTIN7020160461704HS code8536.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO04617 Plus single socket IP44 POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- EKO04617
- EAN / GTIN
- 7020160461704
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Lifecycle status
- Phased out
- IP rating
- IP44
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Full cover plate
- Number of units
- 1
- Lockable
- No
- With hinged lid
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9010
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP44
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 51 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 1
- Number of active contacts (round)
- 2
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 32 mm
- Metallic colour
- No
- Number of loop throughs
- 1
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160461704
- SAP 1000066224
- Code 8736882
Product Documentation
Document preview: Plus single socket IP44 POLAR WHITE (EKO04617) — Specification sheet
More from ELKO
ELKO
BOX LOW RING 4-Run Stud
EKO10449
ELKO
Switch M Awning Flush RS PURE WHITE
EKO30109
ELKO
MOD.UT.2X8 Cat 6 UTP LSA One PURE WHITE
EKO50115
ELKO
Frame 4-Hole One PURE WHITE
EKO50006
ELKO

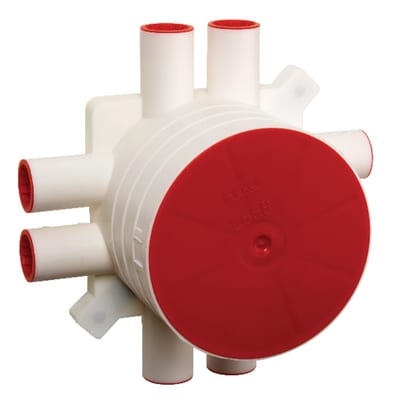

Ceiling Box 64 mm, 8 Entries
EKO04027
ELKO

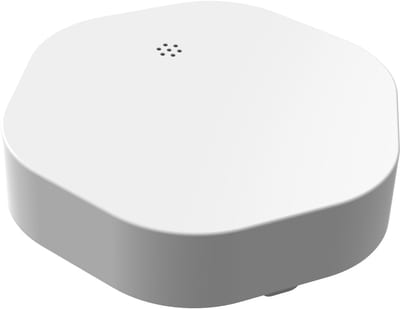

SmartSensor lekkasje wireless
EKO07218
ELKO

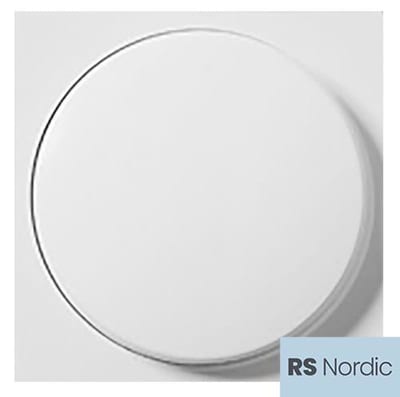

Dimmerkit 315/630 RS PURE WHITE
EKO07344
ELKO

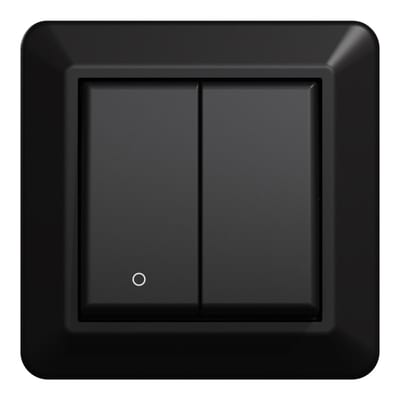

Switch 2+1 Pole Flush RS Black
