ELKO
BOX LOW RING 4-Run Stud
Part numberEKO10449EAN / GTIN7020160104496HS code3925.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

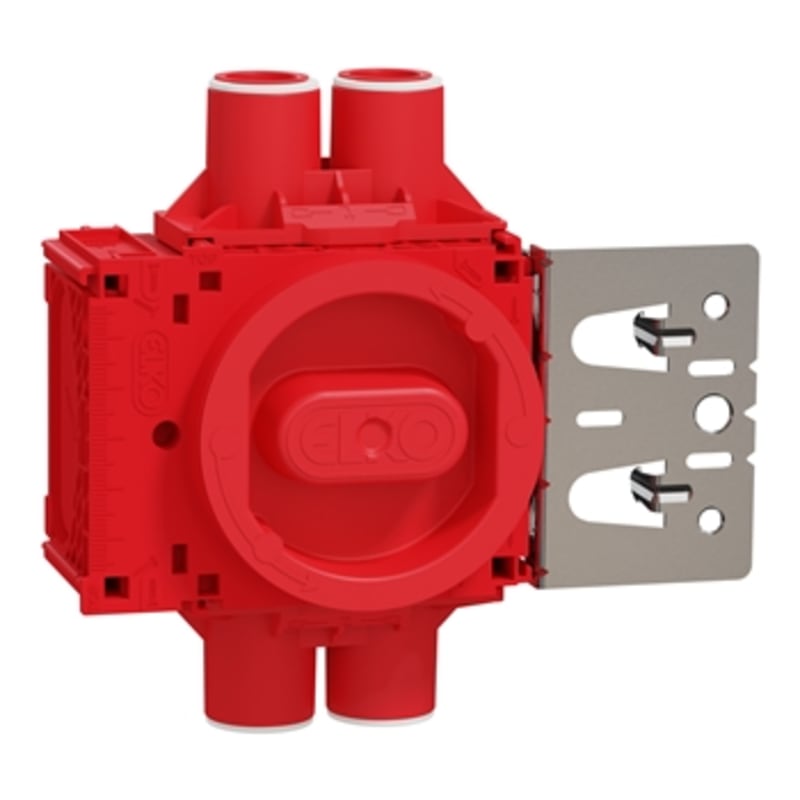

ELKO EKO10449 Flexi+ recessed box with 4 run, with large wiring compartment. Manually adjustable fastening ring 9-24mm.
Technical Specifications
- Manufacturer part number (MPN)
- EKO10449
- EAN / GTIN
- 7020160104496
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Number of adjustable device fixing lugs
- 2
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- Yes
- Equipped with
- Mounting plate
- Diameter
- 71 mm
- Length
- 134 mm
- Width
- 137 mm
- Depth
- 55 mm
- Inner depth
- 53 mm
- Suitable for wall/board thickness
- 9–24 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 8
- Number of included spouts
- 5
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Red
- Degree of protection (IP)
- IP3X
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 2.5 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- Special application
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7020160104496
- SAP 1200700610
- Code 83593994
Product Documentation
Document preview: BOX LOW RING 4-Run Stud (EKO10449) — Specification sheet
