ELKO Plus Europlug 3-Way Flush-Mounted Socket Black
Pricing
Request a quote
We reply within 24 hours
Product Description

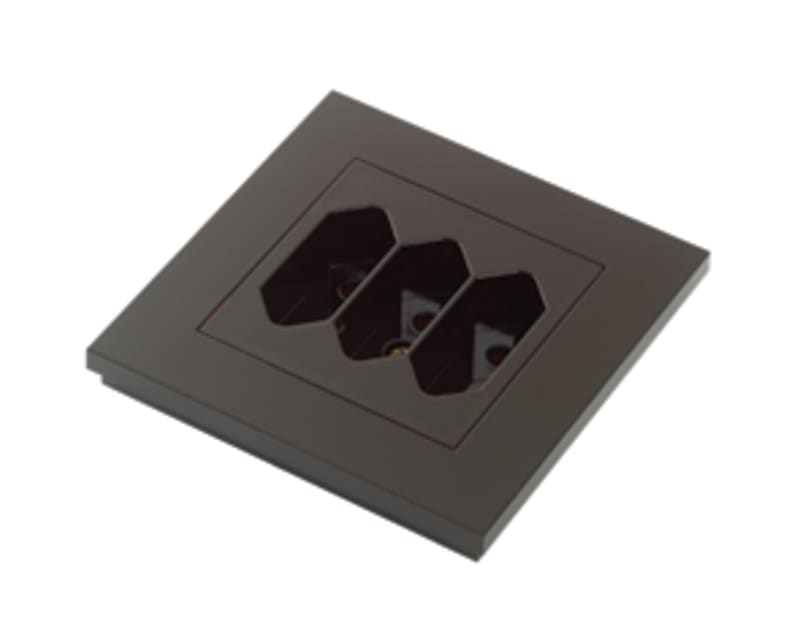

ELKO EKO03783 is a Plus Europlug 3-way socket outlet for flush-mounted installation with a full cover plate. Rated 2.5 A at 250 V AC 50-60 Hz, it accepts CEE 7/16 type C plugs with enhanced contact protection and loop-through wiring. The 86 x 86 x 38.5 mm black thermoplastic module uses screw-terminal connections and installs on a minimum 30 mm mounting box.
Technical Specifications
- Manufacturer part number (MPN)
- EKO03783
- EAN / GTIN
- 7020160378309
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal current
- 2.5 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- Black
- Model
- Europlug (CEE 7/16, type C)
- Halogen free
- Yes
- Cover
- Full cover plate
- Number of units
- 3
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Lacquered
- With signal lamp
- No
- Number of socket outlets
- 3
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9005
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 38.5 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 1
- Number of active contacts (round)
- 6
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 30 mm
- Metallic colour
- No
- Number of loop throughs
- 1
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7020160378309
- SAP 1000069109
- Code 8924130
