ELKO Surface-Mounted Round Device Box 45 mm 3-Gang
Pricing
Request a quote
We reply within 24 hours
Product Description

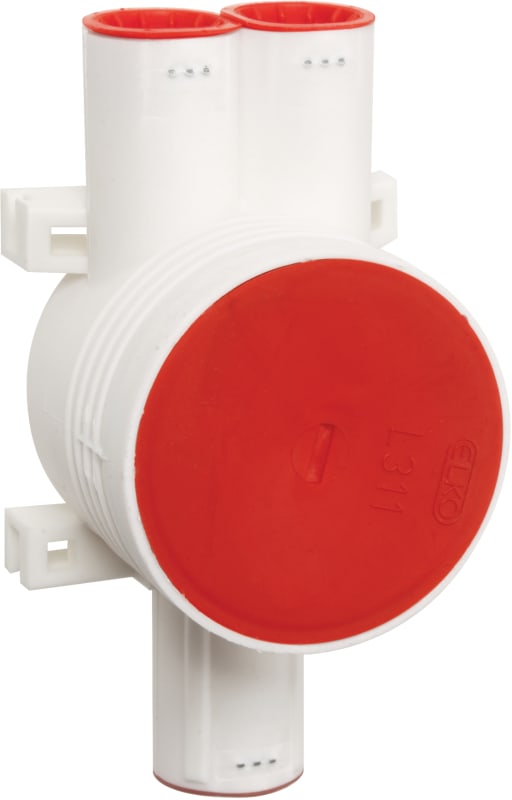

ELKO EKO04038 is a flush-mounted round device box with a 45 mm depth and 49 mm diameter, engineered for a single wiring device with three-run tube entries. The halogen-free plastic housing includes a revolving ring, nozzle feed-through and a construction protective cover to keep the interior clean during building work. Tube entries accommodate 16 mm conduit for standard residential and light commercial installations.
Technical Specifications
- Manufacturer part number (MPN)
- EKO04038
- EAN / GTIN
- 7020160403803
- Sales unit
- pcs
- Package quantity
- 50 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- No
- Equipped with
- None
- Diameter
- 49 mm
- Length
- 95 mm
- Width
- 49 mm
- Depth
- 45 mm
- Inner depth
- 43 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 2
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- White
- Degree of protection (IP)
- IP20
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- With nail lugs
- No
- Special application
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160403803
- SAP 1000011430
- Code 889941
Product Documentation
More from ELKO
ELKO
RS1088 PT socket 2+6 POLAR WHITE
EKO05038
ELKO
DEVICE BOX DoubleL 626 .
EKO05050
ELKO
Frame 5-Hole One PURE WHITE
EKO50008
ELKO
DCL Plug Polar WHITE
EKO04970
ELKO
ELKO EKO30113 Rocker with Light Unit 2-Pole, Pure White
ELKO
ELKO RS Nordic DCL Ceiling Outlet with Screw Terminals White
EKO30133
ELKO
RS/PLUS Centre Plate 2X Keystone straight POLAR WHITE
EKO60008
ELKO

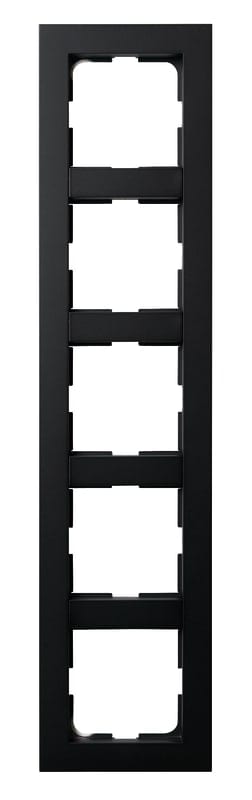

PLUS Frame 5-Hole SO
