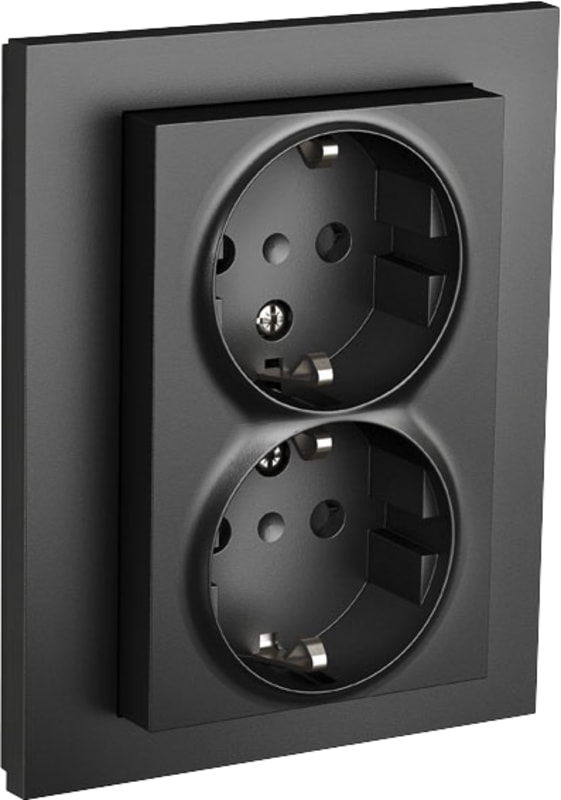

ELKO Plus Double Rehab Socket Outlet with Earth Black
Part numberEKO05172EAN / GTIN7020160517203HS code8536.69
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO Plus double rehab socket outlet with earth, black. Flush-mounted with earthing clips, halogen-free, rated 16 A / 250 V, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05172
- EAN / GTIN
- 7020160517203
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- Black
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 86 mm
- Device height
- 107 mm
- Device depth
- 40.7 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of active contacts (round)
- 4
- Min. depth of built-in installation box
- 20 mm
- Metallic colour
- No
- Protective contact
- Earthing clips
- Number of loop throughs
- 2
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7020160517203
- SAP 1000096484
- Code 8589976
Product Documentation
Document preview: ELKO Plus Double Rehab Socket Outlet with Earth Black (EKO05172) — Specification sheet
More from ELKO
ELKO
RS 1091 PT split socket outlet POLAR WHITE
EKO05816
ELKO
WALL-Mounted Cover RS105/91H=18mm
EKO09628
ELKO
Multi box pipe/Cable 1,5 4 HULL
EKO05647
ELKO
ELKO S1012 PT Single Socket Outlet without Earth POLAR WHITE
EKO04966
ELKO
Switch 2-P RS 16/2P OF-ON
EKO05908
ELKO

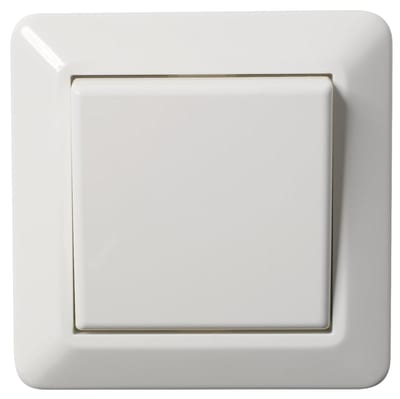

Two-Way RS16/6 in POLAR WHITE
EKO03439
ELKO

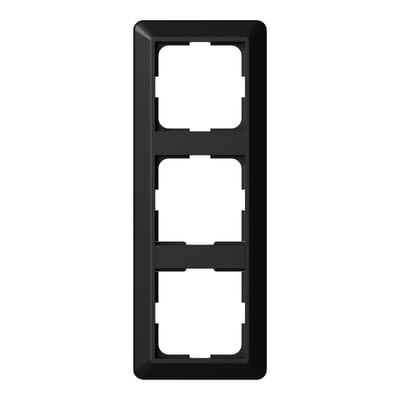

Frame 3-Hole RS Black
EKO40015
ELKO

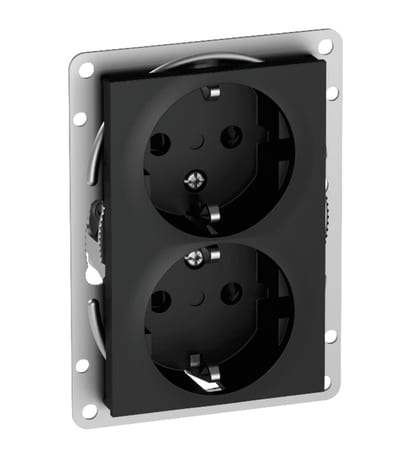

Plus option double socket Black
