ELKO

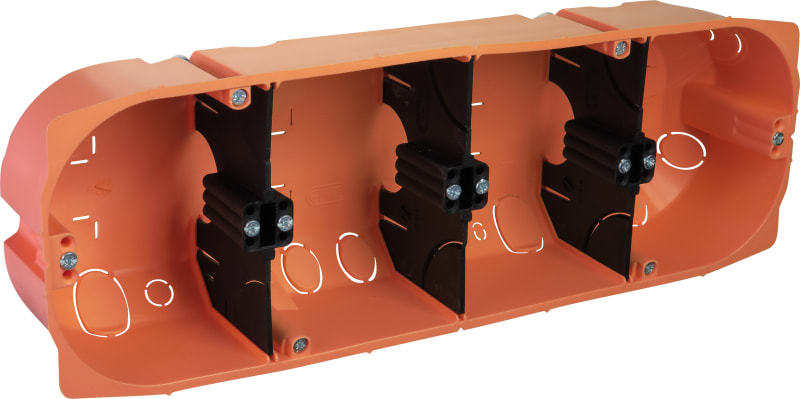

Multi box pipe/Cable 1,5 4 HULL
Part numberEKO05647EAN / GTIN7020160564702HS code8544.42
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
developed for use with ELKO 4-hole double socket outlet frames where TV and audio outlets are to be installed.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05647
- EAN / GTIN
- 7020160564702
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- With partition panel
- Yes
- Mounting method
- Flush-mounted
- Construction type
- Built-in installation box (device box)
- Model
- 4-fold
- Provided with revolving ring
- No
- Couplable
- No
- Equipped with
- None
- Diameter
- 71 mm
- Length
- 287 mm
- Width
- 73 mm
- Depth
- 58 mm
- Inner depth
- 56 mm
- For number of electric fittings
- 4
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/19 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Orange
- Degree of protection (IP)
- IP20
- Cover model
- None
- Transparent cover
- No
- Sealable
- No
- Circuit integrity
- None
- With screening
- Yes
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7020160564702
- SAP 1000680604
- Code 8582136
Product Documentation
Document preview: Multi box pipe/Cable 1,5 4 HULL (EKO05647) — Specification sheet
