ELKO
BF360 Bev.detector ceiling IP44
Part numberEKO07042EAN / GTIN7020160704214HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

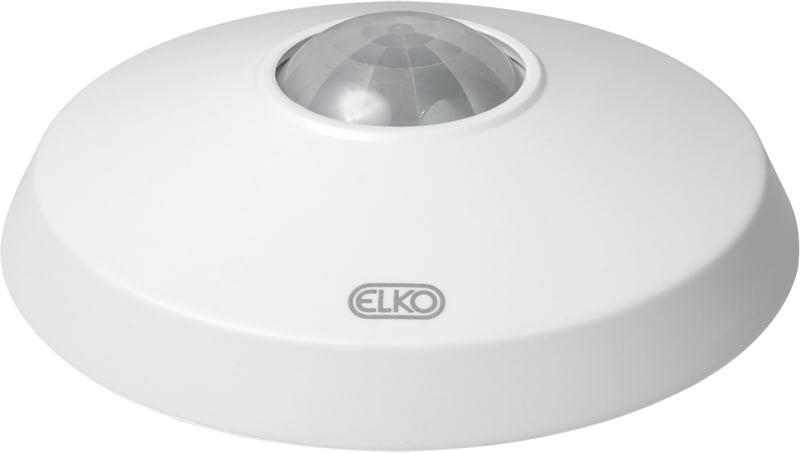

ELKO EKO07042 BF360 is a ceiling-mounted motion sensor which is suitable for indoor or outdoor use.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07042
- EAN / GTIN
- 7020160704214
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- IP rating
- IP44
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 110 mm
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 30 mm
- Depth
- 70 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 40 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 111 mm
- Suitable for wall mounting
- No
- Built-in width
- 55 mm
- Built-in diameter
- 55 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. switching power
- 2000 W
- Temperature
- -20–45 °C
- Max. starting current
- 9 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 10–2000 lx
- Suitable for C-load
- No
- Diameter reach on floor
- 7 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 9010
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- Built-in length
- 40 mm
- With connection cable
- No
- Degree of protection (IP)
- IP44
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- No
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, horizontal
- 0–360 °
- Pivoting range sensor, vertical
- 0–360 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 9 A
- Min. depth of built-in installation box
- 40 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 100 W
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160704214
- SAP 1200054682
- Code 81895666
Product Documentation
Document preview: BF360 Bev.detector ceiling IP44 (EKO07042) — Specification sheet
