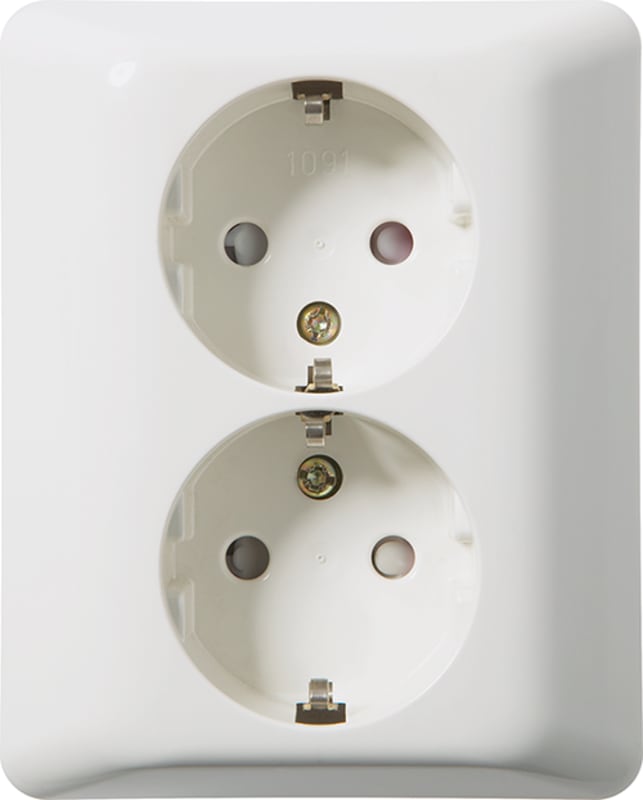

ELKO HS 1091 PT IP21 Socket Outlet with Earth POLAR WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO05836 HS 1091 PT flush-mounted double earthed socket outlet with push-in terminals. Supplied with full cover plate and child protection (shuttered). Rated IP21, 16 A / 250 V, halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05836
- EAN / GTIN
- 7020160583611
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- IP rating
- IP21
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Full cover plate
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9010
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 84 mm
- Device height
- 104 mm
- Device depth
- 49 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 1
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 22 mm
- Metallic colour
- No
- Number of loop throughs
- 2
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160583611
- SAP 1200020421
- Code 81413558
Product Documentation
