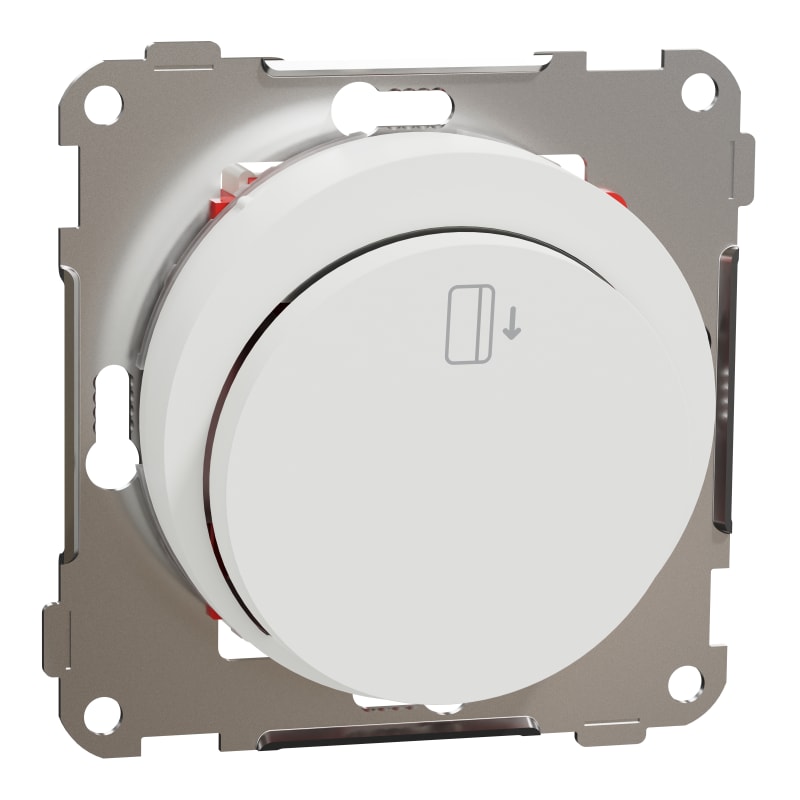

ELKO EKO50065 One Key-Card Switch 1/2/6 Two-Way 16 A IP21 White
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO50065 is a flush-mounted key-card switch from the ELKO One series, wired as a two-way switch operated by a hotel key card. The unit is rated 16 A at 250 V (10 AX for fluorescent loads), has a white 71 x 71 mm cover, and reaches IP21 in the installed position with LED indication. Halogen-free thermoplastic housing, screw terminal connection, mounted with screws in a standard installation box. Typical applications include hotel rooms and short-term rental units where room power is enabled by the guest's key card. Supplied in packs of 50 pieces.
Technical Specifications
- Manufacturer part number (MPN)
- EKO50065
- EAN / GTIN
- 7020160500656
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Wiring system
- Two-way switch
- Method of operation
- Hotel card
- Assembly arrangement
- Basic element with central cover plate
- Push button switch
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Screw mounting
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Yes
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP21
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 10 AX
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 71 mm
- Device height
- 71 mm
- Device depth
- 35 mm
- Built-in depth
- 12 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Min. depth of built-in installation box
- 12 mm
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Colour of switch operator
- White
- Imprint/indication
- None
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160500656
- SAP 1200727067
- Code 83858753
Product Documentation
